Zoom H6essential Handy Recorder

Manufacturer:
Zoom
Our Part Number:
ZOO1088
Manufacturer Part No:
H6ESSENTIAL
In stock
Ship Time: Orders placed by 4pm ET will ship the same day. Weekends & Holidays Excluded.
Quick Overview
- 6-track 32-bit float recorder with Dual A/D Converters
- Clip-free recording with no need to set gain
- Records up to 96kHZ sample rate
- Interchangable Mic Capsule System 3.0 with 32-bit float support
- Included X/Y Mic Capsule captures up to 135 dB SPL
$299.99
Zoom H6essential Handy Recorder Zoom H6essential Handy Recorder Zoom H6essential Handy Recorder Zoom H6essential Handy Recorder Zoom H6essential Handy Recorder
Zoom H6essential Handy Recorder
32-Bit Float Recording for All

THE FLAGSHIP
Our most robust handheld recorder, the H6essential is a recording powerhouse. With 6 tracks of 32-bit float recording, the H6essential provides unprecedented quality and unmatched versatility.

STEP UP TO 32-BIT FLOAT
With 32-bit float and dual AD converters the H6essential captures huge dynamic range. This gives creators the ability to record perfect audio, clip-free every time.

THE FIRST HANDY RECORDERS WITH ACCESSIBILITY
The Essential Series was designed with Accessibility for the blind and visually impaired. Navigate the menu with audible descriptions through the built-in speaker or headphones. Creators can choose English, Spanish, French, Japanese, German, Italian or Chinese.*

SIX PERFECT TRACKS

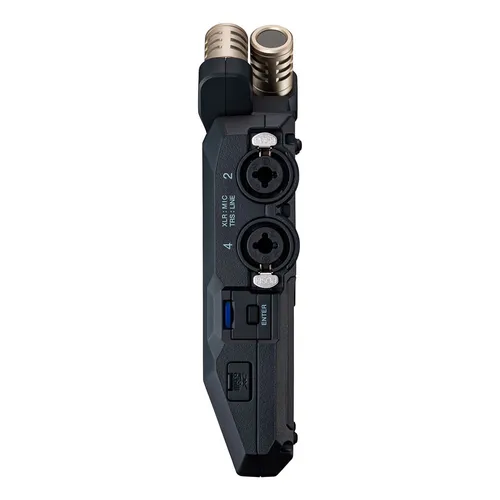

The 4 XLR/TRS combo inputs feature ultra-clean Zoom preamps, and the included X/Y microphones can capture up to a booming 135 dB SPL, equivalent to a jet taking off.

NEXT GENERATION 3.0 CAPSULE SYSTEM
The H6essential’s 3.0 capsule system has been updated to support 32-bit float and gives creators more options to use the right mic for their recording.

RECORD AND STREAM
Use the USB-C port to connect to PC, Mac, iOS, and Android device to use the H6essential as a 32-bit float interface while simultaneously recording all 6 tracks to an SD card.


Essential For Creators

FOR MUSICIANS
The H6essential is a portable studio. Mic up to 4 instruments using the XLR inputs and use the X/Y microphones to capture the full ensemble in beautiful stereo.

FOR FILMMAKERS
32-bit float recording gives filmmakers confidence with every take. The interchangeable capsules, 4 XLR inputs and wireless timecode make the H6essential invaluable on any set.

FOR PODCASTERS
When everyone wants to be on your podcast, the H6essential has you covered with 4 XLR inputs. For two additional XLR inputs, connect the optional EXH-6e capsule.

WAVEFORM DISPLAY
The H6essential has a waveform display so you can see your audio as it records.

BUILT-IN MIXER
For full control of your mix, hit the ‘Mixer’ button and quickly adjust your levels.


NEW CONNECTIONS

PAIR WITH YOUR iOS DEVICE
Use the BTA-1* Bluetooth Adapter to pair with your iOS device to remotely hit record, adjust your mix, view your waveforms, and change settings.

BLUETOOTH TIMECODE SYNC
With the BTA-1* Bluetooth Adapter you can also pair with Bluetooth timecode devices for audio and video sync.
*Please note: BTA-1 Adapter not included

REMOVE THE MICS
When the X/Y mic is not needed, detach the capsule and use the included cap for a low profile setup.


MORE UPGRADES

QUIETER CONTROLS
Recording and rotary controls have been meticulously designed to allow for silent operation.

LISTEN BACK WITH THE ONBOARD SPEAKER
Use the improved onboard speaker to listen to your recordings for quick reference.

OUTPUTS YOU NEED

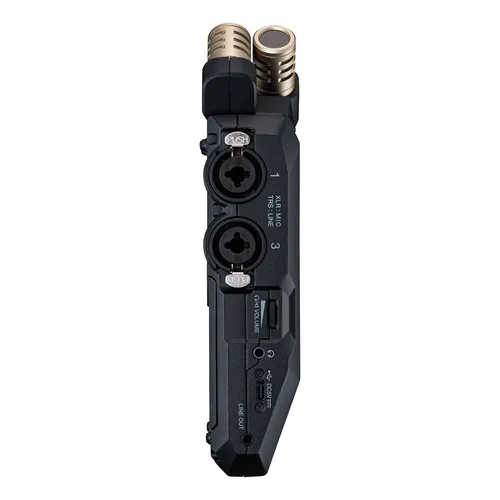

Use the line output to connect to a camera and the headphone output to monitor your audio.

HIGHER VISIBILITY

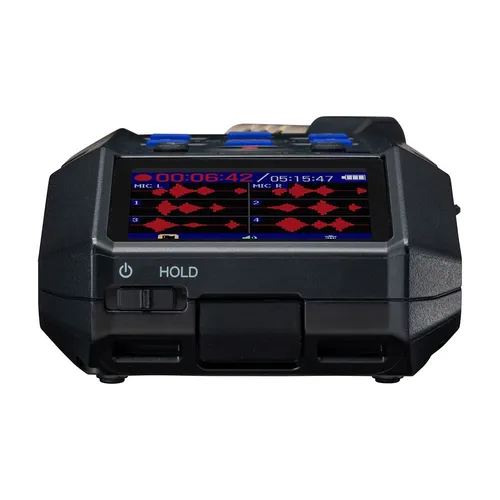

The new full-color LCD screen provides you with a more vivid view as you record and navigate the menu.


Essential Versatility For All Creators

CAPSULES

XYH-6e Stereo Mic Capsule (Included)
Adds 2 high-quality microphones in a X/Y stereo arrangement. This arrangement is most sensitive to audio directly in front while also capturing a clean stereo image.

SSH-6e Stereo Shotgun Capsule
The SSH-6e includes a super-directional microphone to pick up sound in the center, as well as a bidirectional side mic to pick up sounds from the left and right. The mid-side stereo image is adjustable from mono to ultra wide stereo pickup. You can capture dialogue with the center mic, then mix in the desired amount of environmental sound captured by the side mic.

EXH-6e Input Capsule
If you need more inputs, simply plug in the EXH-6e dual XLR/TRS combo capsule. This allows you to connect 2 additional microphones, instruments, or line-level sources. Phantom power can be applied if you connect power to the USB-C port on the capsule. There is also a 3.5mm jack for line or mic level input with plug in power available for lavalier mics.
INPUTS
CHANNELS
2(MIC Capsule) + 4(XLR/TRS INPUTS)
MIC INPUT
MIC TYPE
Unidirectional
SENSITIVITY
-42 dB, 1 kHz at 1 Pa
INPUT GAIN
Adjustment unnecessary (dual AD converter circuits used)
MAX SOUND PRESSURE INPUT
135 dB SPL
XLR/TRS INPUTS
CONNECTORS
XLR/TRS combo jacks (XLR:2 HOT / TRS:TIP HOT)
INPUT GAIN
Adjustment unnecessary (dual AD converter circuits used)
INPUT IMPEDANCE
MIC: 3 kΩ or more LINE: 3 kΩ or more
MAXIMUM INPUT LEVEL
XLR: +4 dBu TRS: +24 dBu
PHANTOM POWER
+48V
EQUIVALENT INPUT NOISE
−120 dBu or less
OUTPUTS
LINE OUT
CONNECTOR
1/8" stereo mini jack
MAXIMUM OUTPUT LEVEL
+2 dBu
HEADPHONE
CONNECTOR
1/8" stereo mini jack
MAXIMUM OUTPUT LEVEL
20 mW +20 mW(32 Ω load)
BUILT-IN SPEAKER
500mW/8Ω mono speaker
RECORDING
RECORDING MEDIA
4GB–32GB microSDHC cards 64GB–1TB microSDXC cards
WAV
SUPPORTED FORMATS
44.1/48/96kHz 32-bit float BWF and iXML
MAXIMUM SIMULTANEOUS RECORDING TRACKS
44.1/48kHz: 8 (2 MIC Capsule + 4 XLR/TRS INPUTS + 2 LR) 96kHz: 6 (2 MIC Capsule + 4 XLR/TRS INPUTS)
DISPLAY
LCD
2.00" full color (320 × 240)
POWER SUPPLY
BATTERIES
4 AA
AC ADAPTER
ZOOM AD-17 (DC 5 V/1 A) • USB bus power is supported.
USB
CONNECTOR
USB Type-C
MASS STORAGE
CLASS
USB 2.0 High Speed
AUDIO INTERFACE
CLASS
USB 2.0 High Speed
SAMPLING RATE
Multi Track mode:44.1/48/96kHz Stereo Mix mode:44.1/48/96kHz
BIT RATE
24-bit/32-bit float
CHANNELS
Multi Track mode:6 in/2 out Stereo Mix mode:2 in/2 out
BTA-1
Support (iOS App)
ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES
Alkaline batteries: about 18 hours 48 kHz/32-bit float, Mic Capsule 2ch recording
