General

Mass

Approx 4.41 lb (body only)
Approx. 10.58 lb (with Viewfinder, Eyepiece, Grip Remote Control, BP-U35 battery, SELP28135G LENS, an XQD memory card, handle, mic holder)

Dimensions (W x H x D)

5.75 × 5.61 × 9.02 in (body without protrusions)

Power Requirements

DC 19.5V

Power Consumption

Approx. 35.2 W (while recording XAVC-I QFHD 59.94p, SELP28135G Lens, Viewfinder ON, not using external device)

Operating Temperature

0°C to 40°C32°F to 104°F

Storage Temperature

-20°C to +60°C-4°F to +140°F

Battery Operating Time

Approx. 54 min. with BP-U35 battery(while recording XAVC-I QFHD 59.94p, SELP28135G Lens, Viewfinder ON, not using external device)
Approx. 108 min. with BP-U70 battery
(while recording XAVC-I QFHD 59.94p, SELP28135G Lens, Viewfinder ON, not using external device)

Recording Format (Video) [XAVC Intra]

XAVC-I QFHD 59.94p mode: VBR, MAX bit rate 600 MBps, MPEG-4 AVC/H.264
XAVC-I QFHD 50p mode: VBR, MAX bit rate 500 MBps, MPEG-4 AVC/H.264
XAVC-I QFHD 29.97p mode: VBR, MAX bit rate 300 MBps, MPEG-4 AVC/H.264
XAVC-I QFHD 25p mode: VBR, MAX bit rate 250 MBps, MPEG-4 AVC/H.264
XAVC-I QFHD 23.98p mode: VBR, MAX bit rate 240 MBps, MPEG-4 AVC/H.264
XAVC-I HD 59.94p mode: CBG, MAX bit rate 222 MBps, MPEG-4 AVC/H.264
XAVC-I HD 50p mode: CBG, MAX bit rate 223 MBps, MPEG-4 AVC/H.264
XAVC-I HD 59.94i/29.97p mode: CBG, MAX bit rate 111 MBps, MPEG-4 AVC/H.264
XAVC-I HD 50i/25p mode: CBG, MAX bit rate 112MBps, MPEG-4 AVC/H.264
XAVC-I HD 23.98p mode: CBG, MAX bit rate 89MBps, MPEG-4 AVC/H.264

Recording Format (Video) [XAVC Long]

XAVC-L QFHD 29.97p/25p/23.98p mode: VBR, MAX bit rate 100 MBps, MPEG-4 H.264/AVC
XAVC-L QFHD 59.94p/50p mode: VBR, MAX bit rate 150 MBps, MPEG-4 H.264/AVC
XAVC-L HD 59.94i/29.97p/50i/25p/23.98p/59.94p/50p mode: VBR, MAX bit rate 50 MBps, MPEG-4 H.264/AVC
XAVC-L HD 59.94i/29.97p/50i/25p/23.98p/59.94p/50p mode: VBR, MAX bit rate 35 MBps, MPEG-4 H.264/AVC
XAVC-L HD 59.94i/50i mode: VBR, MAX bit rate 25 MBps, MPEG-4 H.264/AVC

Recording Format (Video) [MPEG-2 Long GOP]

MPEG2 HD422 mode: CBR, MAX bit rate 50 MBps, MPEG-2 422P@HL

Recording Format (Audio)

LPCM 24 bits, 48 kHz, 4 channels

Recording Frame Rate

[XAVC Intra]
XAVC-I QFHD mode: 3840 × 2160/59.94P, 50P, 29.97P, 23.98P, 25P
XAVC-I HD mode: 1920 × 1080/59.94P, 59.94i, 50P, 50i, 29.97P, 23.98P, 25P
[XAVC Long]
XAVC-L QFHD mode: 3840 × 2160/59.94P, 50P, 29.97P, 23.98P, 25P
XAVC-L HD 50 mode: 1920 × 1080, 1280 × 720/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P
XAVC-L HD 35 mode: 1920 × 1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P
XAVC-L HD 25 mode: 1920 × 1080/59.94i, 50
[MPEG-2 Long GOP]
MPEG HD422 mode: 1920 × 1080/59.94i, 50i, 29.97P, 23.98P, 25Pi

Recording/playback Time [XAVC Intra]

XAVC-I QFHD 59.94p
When using QD-G128A (128 GB): Approx. 22 minutes
When using QD-G64A (64 GB): Approx. 10 minutes
XAVC-I QFHD 50p
When using QD-G128A (128 GB): Approx. 26 minutes
When using QD-G64A (64 GB): Approx. 13 minutes
XAVC-I QFHD 29.97p
When using QD-G128A (128 GB): Approx. 43 minutes
When using QD-G64A (64 GB): Approx. 21 minutes
XAVC-I QFHD 25p
When using QD-G128A (128 GB): Approx. 52 minutes
When using QD-G64A (64 GB): Approx. 25 minutes
XAVC-I QFHD 23.98p
When using QD-G128A (128 GB): Approx. 54 minutes
When using QD-G64A (64 GB): Approx. 26 Minutes
XAVC-I HD 59.94p
When using QD-G128A (128 GB): Approx. 57 minutes
When using QD-G64A (64 GB): Approx. 28 Minutes
XAVC-I HD 50p
When using QD-G128A (128 GB): Approx. 57 minutes
When using QD-G64A (64 GB): Approx. 27 minutes
XAVC-I HD 59.94i/29.97p
When using QD-G128A (128 GB): Approx. 105 minutes
When using QD-G64A (64 GB): Approx. 53 minutes
XAVC-I HD 50i/25p
When using QD-G128A (128 GB): Approx. 105 minutes
When using QD-G64A (64 GB): Approx. 53 minutes
XAVC-I HD 23.98p
When using QD-G128A (128 GB): Approx. 130 minutes
When using QD-G64A (64 GB): Approx. 65 minutes

Recording/playback Time [XAVC Long]

XAVC-L QFHD 29.97p/25p/23.98p
When using QD-G128A (128 GB): Approx. 125 minutes
When using QD-G64A (64 GB): Approx. 62 minutes
XAVC-L QFHD 59.94p/50p
When using QD-G128A (128 GB): Approx. 86 minutes
When using QD-G64A (64 GB): Approx. 42 minutes
XAVC-L HD 50 59.94i/29.97p/50i/25p/23.98p/59.94p/50p
When using QD-G128A (128 GB): Approx. 225 minutes
When using QD-G64A (64 GB): Approx. 110 Minutes
XAVC-L HD 35 59.94i/29.97p/50i/25p/23.98p/59.94p/50p
When using QD-G128A (128 GB): Approx. 305 minutes
When using QD-G64A (64 GB): Approx. 150 minutes
XAVC-L HD 25 59.94i/50i
When using QD-G128A (128 GB): Approx. 410 minutes
When using QD-G64A (64 GB) approx. 200 minutes

Recording/playback Time [MPEG-2 Long GOP]

MPEG HD422 59.94i, 50i, 29.97P, 23.98P, 25P
When using QD-G128A (128 GB): Approx. 220 minutes
When using QD-G64A (64 GB): Approx. 105 minutes

Recording Format (Proxy Audio)

XAVC Proxy: AAC-LC, 128 kbps, 2 channels

Recording Format (Proxy Video)

XAVC Proxy: AVC/H.264 Main Profile 4:2:0 Long GOP, VBR
1920 × 1080, 9 MBps
1280 × 720, 9 MBps
1280 × 720, 6 MBps
640 × 360, 3 MBps

Lens

Lens Mount

E-mount

Camera Section

Imaging Device (Type)

1.38 in full-frame, single-chip CMOS image sensor

Imaging Device (Pixel Count)

20.5 M pixels (total)

Built-in Optical Filters

Clear, linear variable ND (1/4ND to 1/128ND)

ISO Sensitivity

ISO 800/4000 (Cine EI mode, D55 light source)

S/N Ratio

57 dB (Y) (typical)

Shutter Speed

64F to 1/8000 sec

Slow and Quick Motion Function

FF 6K mode:
XAVC-I/L
3840 × 2160, 1920 × 1080
1 to 30 frames (29.97/25/23.98)
S35 4K mode:
XAVC-I/L
3840 × 2160, 1920 × 1080
1 to 60 frames (59.94p, 50p, 29.97/25/23.98)
FF 2K, S35 2K mode:
XAVC-I/L
1920 × 1080
1 to 60, 100, 120 frames (59.94p, 50p, 29.97/25/23.98)

White Balance

Preset, Memory A, Memory B (2000K-15000K)/ATWGain-3 to 18 dB (every 1 dB), AGC

Gamma Curve

S-Cinetone, STD1, STD2, STD3, STD4, STD5, STD6, HG1, HG2, HG3, HG4, HG7, HG8, S-Log3

Latitude

15+ stop

Input/Output

Audio Input

XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable
Mic reference: -30 to -80 dBu

SDI Output

SDI OUT1: BNC, 12G-SDI, 3G-SDI (Level A/B), HD-SDI
SDI OUT2: BNC, 3G-SDI (Level A/B), HD-SDI

USB

USB device, micro-B (x1)

Headphone Out

putStereo mini jack (x1) -16 dBu 16 ω

Speaker Output

Monaural

DC Input

DC jack

Remote

Stereo mini-minijack (2.5 mm)

HDMI Output

Type A (x1)

Monitoring

LCD

3.46 in (3.5 type) approx. 2.76 M dots

Built-in Microphone

Omni-directional monaural electret condenser microphone

Media

Type

XQD card slot (x2)SD/MS card slot (x1) for saving configuration dataSD card slot also can be used for proxy video recording

Wi-Fi/NFC

Supported Format

IEEE 802.11 a/b/g/n/ac

Frequency Band

2.4 GHz bandwidth 5.2/5.3/5.6/5.8 GHz bandwidth*
*Depending on country/regional regulation

Security

WEP/WPA-PSK/WPA2-PSK

NFC

NFC Forum Type 3 Tag compliant

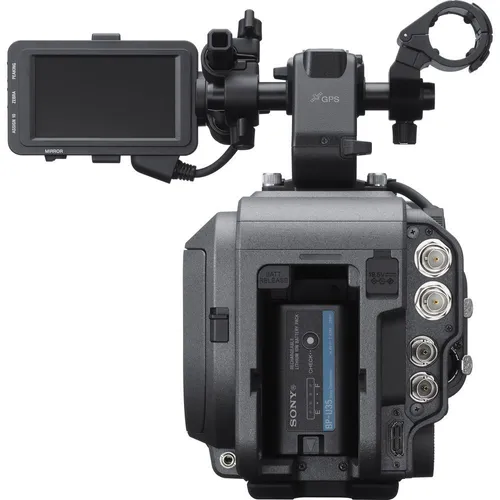

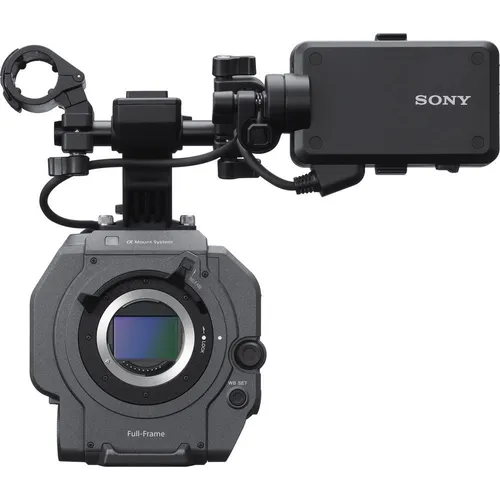

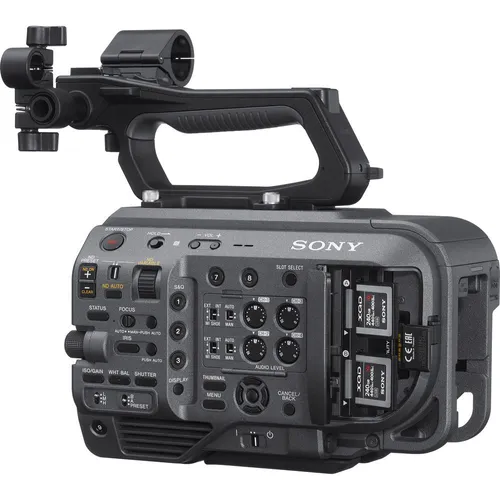

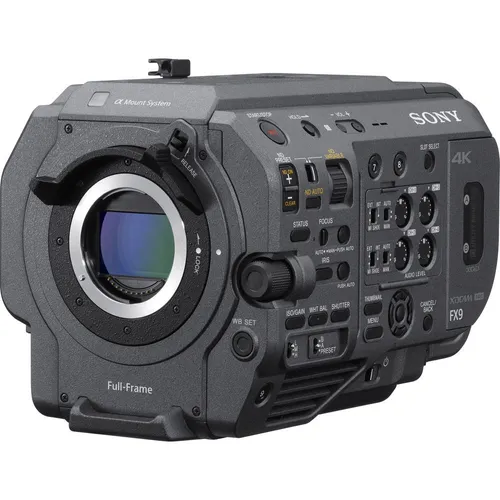

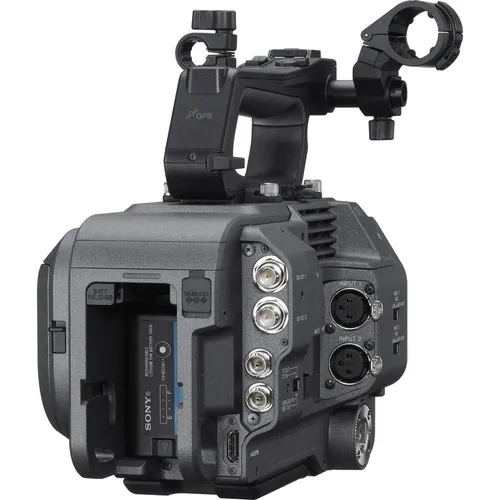

Sony PXW-FX9 XDCAM Full-Frame Camera System - Body Only
