Sony ECM-M1 Digital Shotgun Microphone

Manufacturer:
Sony
Our Part Number:
SON1825
Manufacturer Part No:
ECM-M1
In stock
Ship Time: Orders placed by 4pm ET will ship the same day. Weekends & Holidays Excluded.
Quick Overview
- Beamforming technology employs four mic capsules
- Versatile selection of eight audio recording modes
- Simple and easy controls of recording modes with the dial on the rear
$348.00
Sony ECM-M1 Digital Shotgun Microphone Sony ECM-M1 Digital Shotgun Microphone Sony ECM-M1 Digital Shotgun Microphone Sony ECM-M1 Digital Shotgun Microphone Sony ECM-M1 Digital Shotgun Microphone

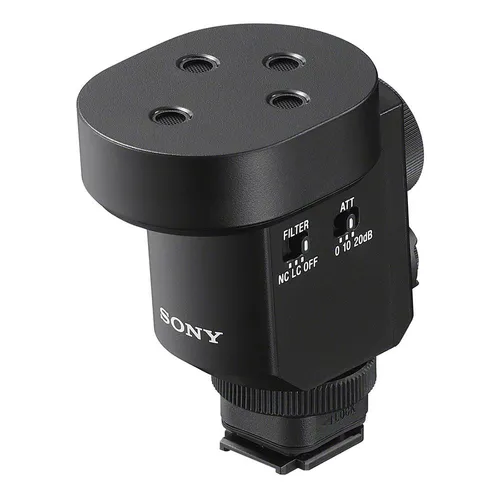

Sony ECM-M1 Digital Shotgun Microphone

Compact shotgun microphone with eight audio recording modes
Completely redefines shotgun microphone performance with beamforming technology that provides the world's first1 eight dial-selectable audio recording modes in a compact microphone with outstanding versatility and audio quality.

Versatile and compact, with superb sound
The ECM-M1 uses beamforming technology and advanced digital processing technology to provide eight audio recording modes including stereo for outstanding versatility and superb sound quality in a wide range of video shooting situations.

Eight audio recording modes in one versatile microphone
Beamforming technology combines four discrete microphone capsules with precision algorithms, to maximize pickup sensitivity in the desired directions while reducing it in others. The result is an incredibly compact and versatile microphone with high performance even in challenging audio environments.

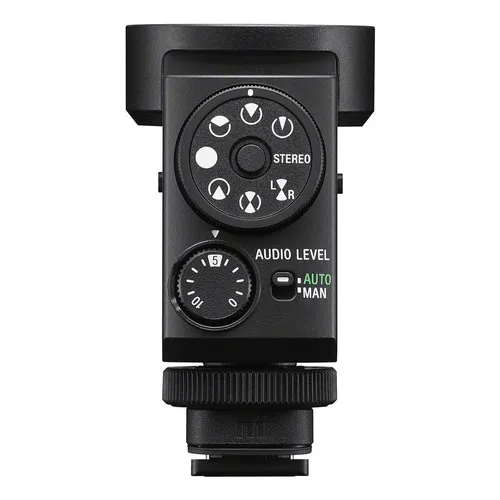

Simple controls for easy setting and operation
Simply turning a dial on the rear of the microphone allows easy, intuitive selection of pickup patterns, and a lock button in the center prevents accidental changes. Other controls are also straightforward and easy to understand and operate.

Outstanding audio quality
The latest digital audio technology delivers stunning audio performance.

Compact size and light weight for versatility and portability
The impressively compact size and light weight of the microphone make it incredibly versatile for a range of shooting, and a trusty addition to any gear bag.

Compact size and light weight
The impressively compact size (length 2-1/2 in. - 64.4 mm) and light weight (2.3 oz. - 65 g) give a high degree of shooting freedom and mobility. The microphone does not intrude when shooting selfies, or when using even a very wide-angle lens. The compact size also makes it easy to use with gimbals and grips.

Easy operability and connectivity
The ECM-M1 provides controls that are easy to operate, with simple connection to compatible cameras.

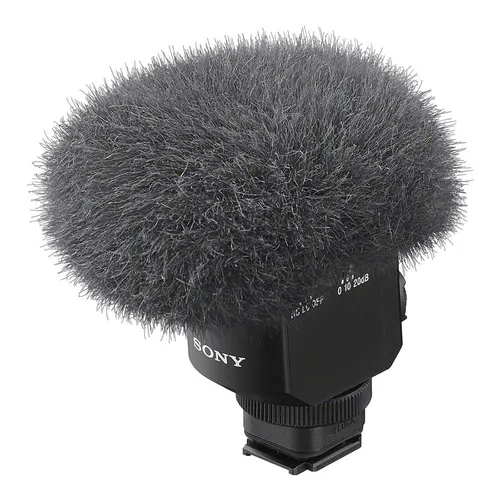

Supplied wind screen
The ECM-M1 is supplied with an effective fur-type wind screen, easily detachable, that can reduce wind noise when shooting outdoors.

Omnidirectional backup safety recording on channels 3 and 4
On compatible cameras, while channels 1 and 2 record with the selected directivity pattern, channels 3 and 4 can make omnidirectional backup safety recordings at different sensitivities (–20 dB4 for channel 4).

Effective mechanical noise suppression
The design dampens shock and vibration, for effective minimization of low-frequency vibration noise. The cable-less design also eliminates mechanical transmission of vibration noise to the microphone via cables.

Genera
l
Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
Microphone type
Back Electret Condenser Microphone
Shoe type
Multi Interface Shoe
Power Supply from Main Unit
Multi Interface Shoe
Monaural / Stereo
Monaural / Stereo
Directivity
Super-directional/unidirectional/omnidirectional/Super-directional (Rear)/Super-directional (Front+Rear)/Super-directional (Front/Rear)separate/STEREO/Ultra-directional
Frequency Response
40 Hz to 20 000 Hz
Microphone Channel Audio Output
Analog 2ch / Digital 4ch
Front sensitivity
-20 dBFS (0.1 Pa, 1 kHz)
Intrinsic noise
14 dB SPL or less
Maximum Input Sound Pressure Level
120 dB SPL
Weights and Measurements
Dimension(Approx.)
W 40.0 mm x H 72.2 mm x D 64.4 mm (1 5/8 inches x 2 7/8 inches x 2 5/8 inches) (excluding knob, wind screen)
Weight(Approx.)
65 g (2.3 oz) (only main unit)

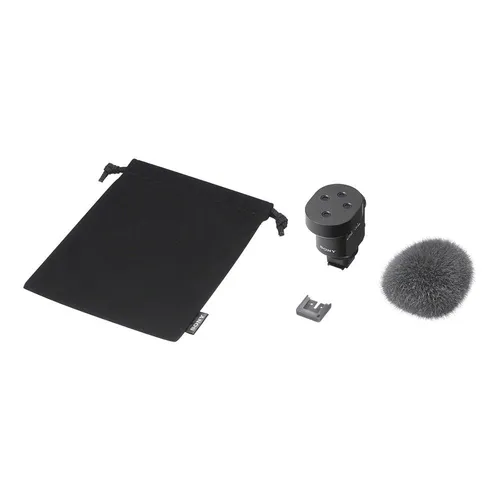

Below are the items included with this product



  1. Sony ECM-M1 Digital Shotgun Microphone
  2. Windscreen
  3. MI Shoe cap
  4. Bag
