Catalog Numbers
Catalog

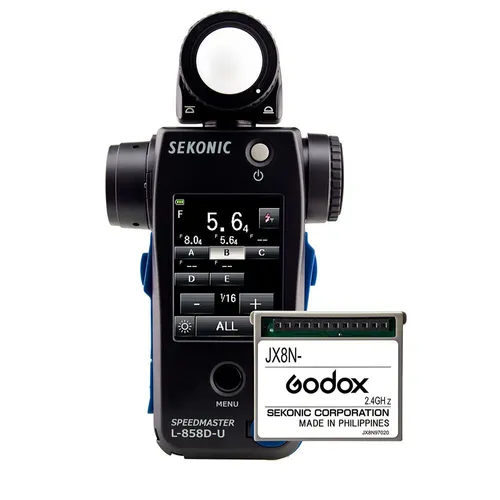

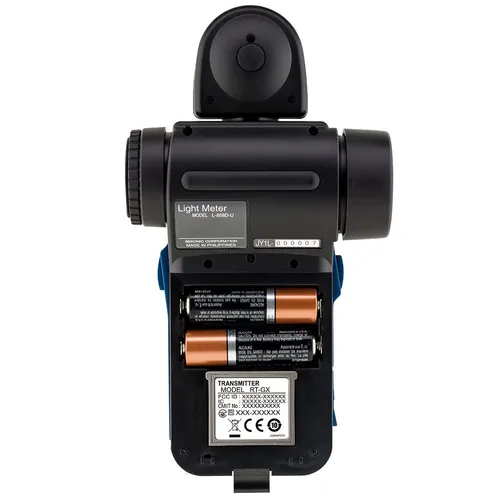

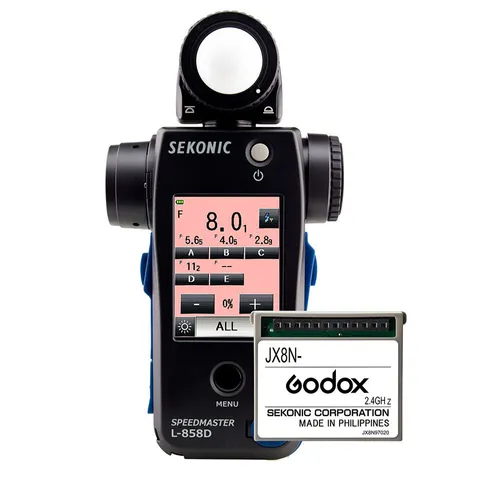

401-858GX (US - Designated L-858D-U+RT-GX, English)
Catalog Info
JY81 (CE and Canada - Designated L-858D+RT-GX bundle kit, English)
JY8G (China and Taiwan - Designated L-858D+RT-GX bundle kit, Chinese)
Metering Type
Sensor
SPD
Measuring System
Exposure Meter Incident light: Swivel head, lumidisc retractable Reflected light: Switching, 1 deg. spot
Measuring Range and Modes
Measuring Modes Ambient Light
T priority, F priority, TF priority, HD_CINE (T priority), CINE (f/s priority), Lux/FC, Cd/m2/FL
Measuring Modes Flash
Cordless, Cord-in (PC), Radio triggering, Multiple cumulative flash, HSS, Flash duration analysis.
Measuring Range (ISO 100) Ambient Incident Light
-5 to 22.9 EV
0.1 to 2,000,000 lx
0.01 to 180,000 fc
Measuring Range (ISO 100) Ambient Reflected Light
-1 to 24.4EV
0.1 to 980,000 cd/m2
0.03 to 290,000 fl
Measuring Range Flash Incident Light
-5 to 22.9 EV
0.1 to 2,000,000 lx
0.01 to 180,000 fc
Measuring Range Flash Reflected Light
-1 to 24.4EV
0.1 to 980,000 cd/m2
0.03 to 290,000 fl
ISO Range
ISO 3 to ISO 13,107,200 + ISO 860
Aperture Range (Ambient Light)
F0.5 to 161.2(=128.9) in 1, 1/2, 1/3 step (Analog Scale: F1.0 to F90 in 1/3 step)
Aperture Range (Flash Light)
F0.5 to 161.2(=128.9) in 1, 1/2, 1/3 step (Analog Scale: F1.0 to F90 in 1/3 step)
Shutter Speeds Range (Ambient Light)
30m to 1/64,000s in 1, 1/2, 1/3 step (Analog scale: 4s to 1/2,000s in 1/3 step)
Shutter Speeds Range (Flash Light)
30m to 1/16,000s in 1, 1/2, 1/3 step
Frame Rate Range (Ambient Light)
11 to 1,000 f/s plus other 20 settings (customized from 0.001 to 99,999.999)
Shutter Angles Range (Ambient Light)
11 to 358 deg. plus other 20 settings (customized from 0.001 to 360)
EV Range (Ambient Light)
Incident light: EV-73.9 to EV103.8 Reflected light: EV-69.9 to EV105.13
Memory
Yes (9 times) both incident and reflected light
Contrast/Comparison Function
Yes (+/-9.9EV in 1/10 step)
Radio System
RT-GX Godox 2.4GHz wireless X system (Replacable with broncolor, Elinchrom, Phottix and PocketWizard transmitter sold as separately )
Flash vs Ambient Analyzing
Yes (in 10% step)
Filter Compensation
Yes (-20 to 20EV, preset 30 type)
Exposure Compensation
Yes (-9.9 to +9.9 EV, in 0.1 step)
Calibration Compensation
Yes (-1.0 to +1.0 EV, in 0.1 step)
Custom Settings
Yes (18 custom settings)
Physical
Water Resistance
Yes
Diopter Adjustment
Yes (-1 to 2.5 D)
Tripod Socket
Yes
Operating Temperature
-10 to 50 deg. C
Storage Temperature
-20 to 60 deg. C
Power source
1.5V x 2 (AA battery)
LCD
2.7" color dot matrix touch panel LCD
LCD Backlight
Yes
Weight (lbs.)
0.57
Weight (KG)
0.25
Product Depth Inches
6.90
Product Width Inches
3.70
Product Height Inches
1.90
Product Depth Centimeters
17.16
Product Width Centimeters
9.40
Product Height Centimeters
4.90
Product Metric Weight Grams
240.00
