RED DIGITAL CINEMA Pro V-Lock I/O Module

Our Part Number:
RED1027
Manufacturer Part No:
720-0064
Backorder
Ship Time: Please LiveChat or Email For Time
$1,095.00
qty.
Notify me about price drops

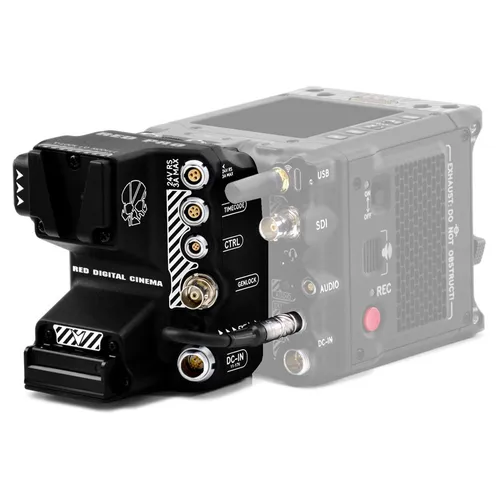

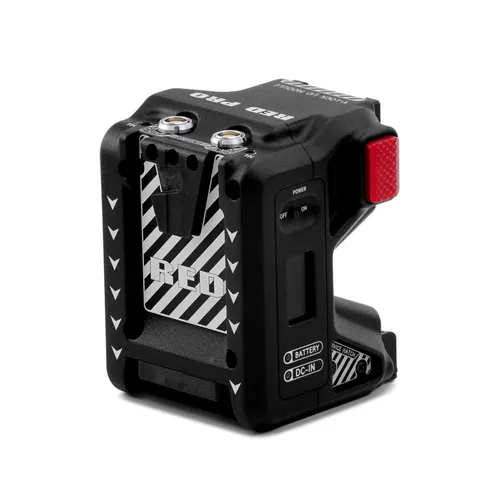

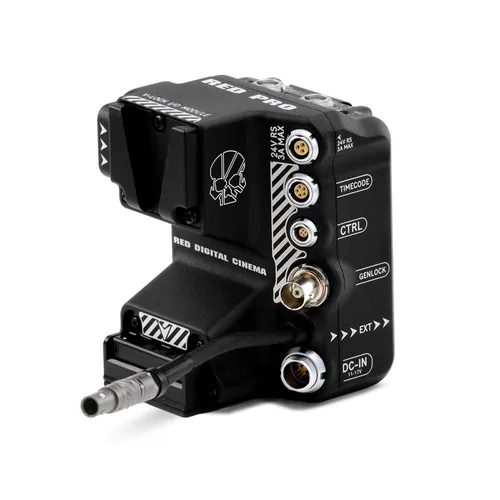

The RED® Pro V-Lock I/O Module offers a variety of input/ output connections, and it also includes an industry standard V-Lock mount to power your KOMODO-X™ with higher capacity batteries. This V-lock module mounts directly to the KOMODO-X’s rear Micro V-Lock plate and 9-Pin EXT Port, and it offers connections for the following:
  • DC Power Input (DC-IN)
  • Genlock (BNC)
  • CTRL (4-Pin)
  • Timecode (5-pin)
  • 1x 3-Pin 24-volt (regulated) R/S port (3A max)
  • 2x 2-Pin 12-volt (unregulated) AUX ports (3A combined max)

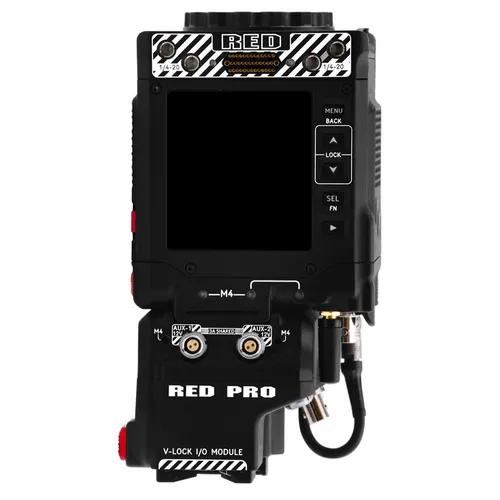

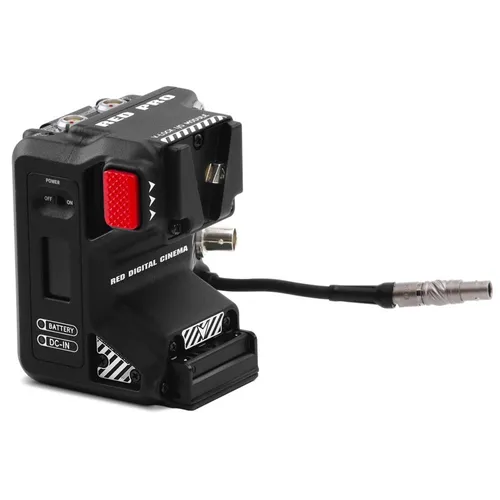

The module also includes an operator-side screen which displays key power voltage and battery percentage information (with compatible batteries) along with a power switch to cut power to the module when you want to leave a battery on the module for long durations.

NOTES:
It is recommended to use 12A Batteries such a the REDVOLT® MICRO-V or REDVOLT® XL-V when using all AUX outputs simultaneously.
When used with REDVOLT® NANO-V the AUX power outputs will be disabled.
RED Pro I/O Module was designed in partnership with Core SWX.
