SENSOR TYPE

KOMODO™ 19.9 MP Super 35mm Global Shutter CMOS

EFFECTIVE PIXELS

6144 x 3240

SENSOR SIZE

27.03 mm x 14.26 mm (Diagonal: 30.56mm)

DYNAMIC RANGE

16+ Stops

MOUNT TYPE

RF mount
Accepts Canon RF Mount Based Lenses and Adapters
Supports Canon EF with full electronic communication via compatible Canon RF Mount Adapters
See Lens Compatibility List for more details

MAX DATA RATES

Up to 280 MB/s using RED Pro CFast or other qualified CFast 2.0 media cards [1]

REDCODE® RAW MAX FRAME RATES

40 fps at 6K 17:9 (6144 x 3240)
50 fps at 6K 2.4:1 (6144 x 2592)
48 fps at 5K 17:9 (5120 x 2700)
60 fps at 4K 17:9 (4096 x 2160)
120 fps at 2K 17:9 (2048 x 1080)

PLAYBACK FRAME RATES (PROJECT TIME BASE)

23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions

BEST AVAILABLE REDCODE® SETTINGS

REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 40 fps
REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 60 fps
REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 120 fps
REDCODE RAW

ACQUISITION FORMATS

6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
5K 17:9 (5120 x 2700)
4K 17:9 (4096 x 2160) and 16:9
2K 17:9 (2048 x 1080)

APPLE PRORES

4K (4096 × 2160) at ProRes 422 HQ and ProRes 422 up to 60 fps
2K (2048 × 1080) at ProRes 422 HQ and ProRes 422 up to 120 fps

CONSTRUCTION

Aluminum Alloy

WEIGHT

2.10 lbs (without body cap and Cfast card)

MEDIA TYPE

CFast 2.0

BATTERY TYPE

Two slots for BP-9XX series batteries

DC POWER INPUT

+7 to +17 V DC via the integrated 2-pin DC-IN port

OPERATING TEMPERATURE

0°C to 40°C (32°F to 104°F)

STORAGE TEMPERATURE

–20°C to 50°C (–4°F to 122°F)

STORAGE RELATIVE HUMIDITY

0% to 85% non-condensing

COLOR MANAGEMENT

Image Processing Pipeline 2 (IPP2)
Supports 33×33×33 3D LUTs
Supports import of CDLs

AUDIO

Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Additional dual channel via integrated 3.5mm audio jack, uncompressed, 24-bit 48 kHz

REMOTE CONTROL

Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector
Genlock, Timecode-in, GPIO and Ctrl (RS232) via the integrated 9-pin EXT Port
Wired control via KOMODO Link Adaptor, using USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing camera control and live MJPEG preview video feed

MONITOR OUTPUT

Integrated 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 24p
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio

MONITOR OPTIONS

Integrated 2.9" 1440x1440 touchscreen LCD with preview and camera control
Wireless live preview video feed via 2.4Ghz/5Ghz WiFi for framing

RED CONTROL

Access full camera controls and live preview from iOS or Android devices.
Available from the Apple App Store and Google Play Store (coming soon). RED Control works wirelessly or wired via the KOMODO Link Adaptor (sold separately).

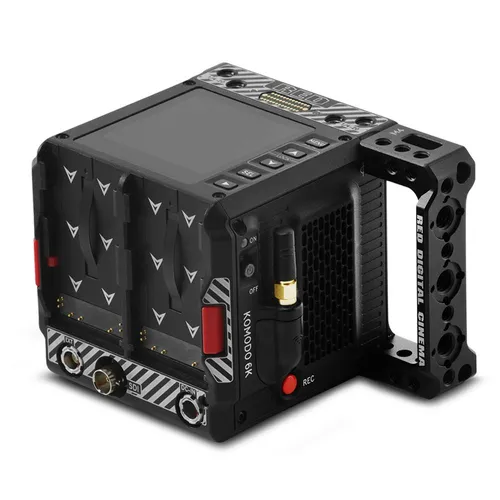

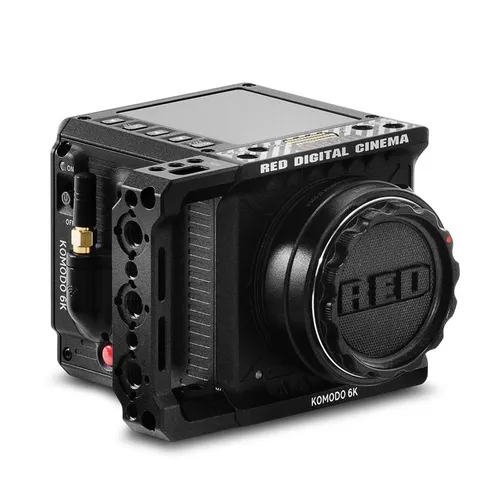

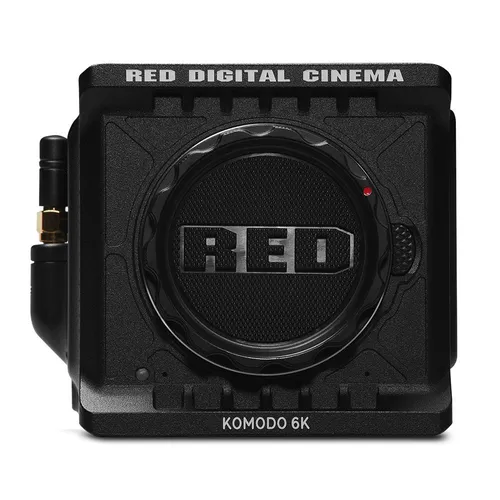

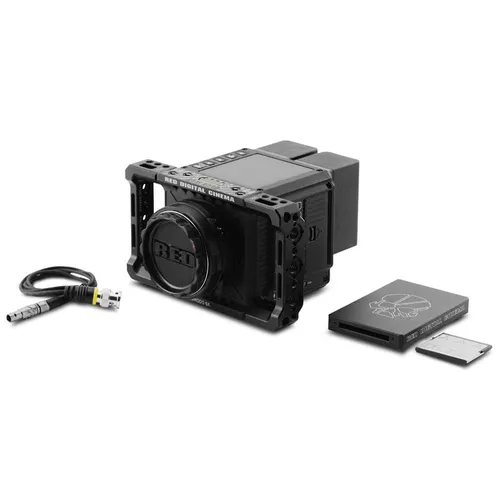

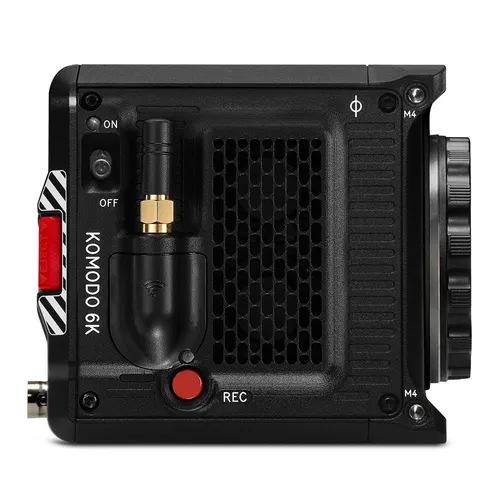

RED DIGITAL CINEMA KOMODO 6K Cinema Camera Starter Pack
