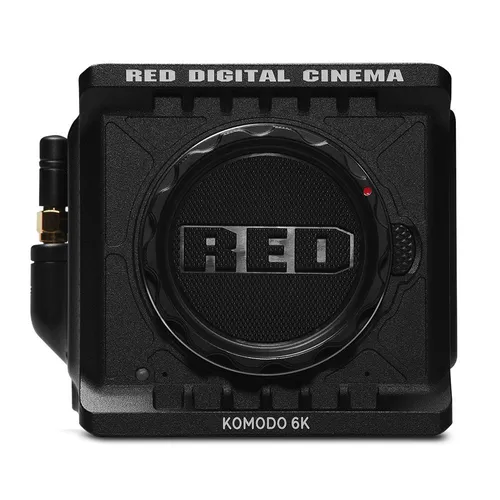

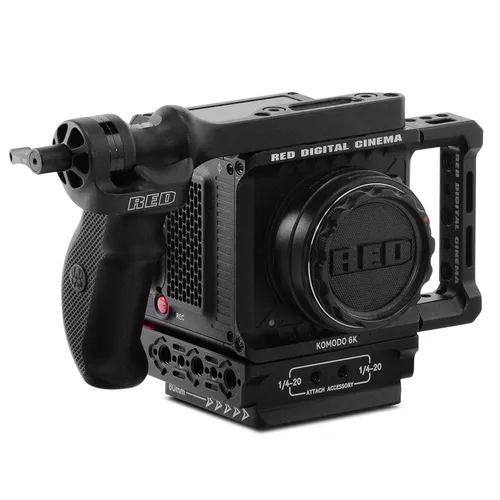

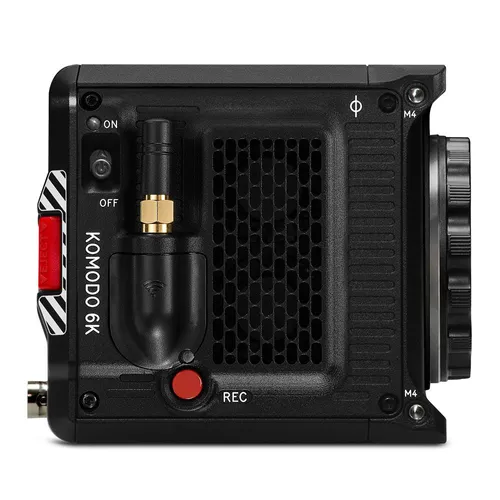

RED DIGITAL CINEMA KOMODO 6K Cinema Camera Production Pack
Our Part Number:
RED1065
Manufacturer Part No:
710-0361
Backorder
qty.
Notify me about price drops
KOMODO
Compact cinema camera featuring RED's unparalleled image quality, color science, and groundbreaking global shutter sensor technology in a shockingly small and versatile form factor.
GLOBAL SHUTTER
Capture every movement, burst, and flash without sacrificing an ounce of dynamic range or overall image quality.
REDCODE
The latest evolution of REDCODE is optimized for KOMODO. Allowing users to continue unlocking unbelievable image capture potential and creative flexilility with a new simplified user experience.
6K RESOLUTION
Shooting on a bigger canvas allows creators to unlock more creative flexibility with benefits such as stabilization, reframing, and more.
STABILIZATION
Capturing in higher resolution allows you to stabilize for the perfect shot in post.
POST ZOOM
Have confidence in always capturing every perfect moment, no matter how sublte.
HIGH-RESOLUTION TOUCH SCREEN
Easily preview content and navigate menus.
VERSATILE LENS MOUNT
KOMODO’S RF Mount provides tremendous flexibility and compatibility with a wide array of EF and PL lenses and the ability to leverage adapters with internal ND filters.
4K OUTPUT
Whether on set or online, take advantage of live 4K monitoring output to review content or stream.
MEDIA
CFAST 2.0 media allows users to use a widely accessible, standardized, and reliable media source.
BATTERIES
KOMODO uses either Canon BP955 (4900MAH) OR BP975 (7350MAH), allowing users to choose an industry standard and widely relied-upon power source.
Compact cinema camera featuring RED's unparalleled image quality, color science, and groundbreaking global shutter sensor technology in a shockingly small and versatile form factor.
GLOBAL SHUTTER
Capture every movement, burst, and flash without sacrificing an ounce of dynamic range or overall image quality.
REDCODE
The latest evolution of REDCODE is optimized for KOMODO. Allowing users to continue unlocking unbelievable image capture potential and creative flexilility with a new simplified user experience.
6K RESOLUTION
Shooting on a bigger canvas allows creators to unlock more creative flexibility with benefits such as stabilization, reframing, and more.
STABILIZATION
Capturing in higher resolution allows you to stabilize for the perfect shot in post.
POST ZOOM
Have confidence in always capturing every perfect moment, no matter how sublte.
HIGH-RESOLUTION TOUCH SCREEN
Easily preview content and navigate menus.
VERSATILE LENS MOUNT
KOMODO’S RF Mount provides tremendous flexibility and compatibility with a wide array of EF and PL lenses and the ability to leverage adapters with internal ND filters.
4K OUTPUT
Whether on set or online, take advantage of live 4K monitoring output to review content or stream.
MEDIA
CFAST 2.0 media allows users to use a widely accessible, standardized, and reliable media source.
BATTERIES
KOMODO uses either Canon BP955 (4900MAH) OR BP975 (7350MAH), allowing users to choose an industry standard and widely relied-upon power source.
SENSOR TYPE
KOMODO™ 19.9 MP Super 35mm Global Shutter CMOS
EFFECTIVE PIXELS
6144 x 3240
SENSOR SIZE
27.03 mm x 14.26 mm (Diagonal: 30.56mm)
DYNAMIC RANGE
16+ Stops
MOUNT TYPE
RF mount
Accepts Canon RF Mount Based Lenses and Adapters
Supports Canon EF with full electronic communication via compatible Canon RF Mount Adapters
See Lens Compatibility List for more details
Accepts Canon RF Mount Based Lenses and Adapters
Supports Canon EF with full electronic communication via compatible Canon RF Mount Adapters
See Lens Compatibility List for more details
MAX DATA RATES
Up to 280 MB/s using RED Pro CFast or other qualified CFast 2.0 media cards [1]
REDCODE® RAW MAX FRAME RATES
40 fps at 6K 17:9 (6144 x 3240)
50 fps at 6K 2.4:1 (6144 x 2592)
48 fps at 5K 17:9 (5120 x 2700)
60 fps at 4K 17:9 (4096 x 2160)
120 fps at 2K 17:9 (2048 x 1080)
50 fps at 6K 2.4:1 (6144 x 2592)
48 fps at 5K 17:9 (5120 x 2700)
60 fps at 4K 17:9 (4096 x 2160)
120 fps at 2K 17:9 (2048 x 1080)
PLAYBACK FRAME RATES (PROJECT TIME BASE)
23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions
BEST AVAILABLE REDCODE® SETTINGS
REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 40 fps
REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 60 fps
REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 120 fps
REDCODE RAW
REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 60 fps
REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 120 fps
REDCODE RAW
ACQUISITION FORMATS
6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
5K 17:9 (5120 x 2700)
4K 17:9 (4096 x 2160) and 16:9
2K 17:9 (2048 x 1080)
5K 17:9 (5120 x 2700)
4K 17:9 (4096 x 2160) and 16:9
2K 17:9 (2048 x 1080)
APPLE PRORES
4K (4096 × 2160) at ProRes 422 HQ and ProRes 422 up to 60 fps
2K (2048 × 1080) at ProRes 422 HQ and ProRes 422 up to 120 fps
2K (2048 × 1080) at ProRes 422 HQ and ProRes 422 up to 120 fps
CONSTRUCTION
Aluminum Alloy
WEIGHT
2.10 lbs (without body cap and Cfast card)
MEDIA TYPE
CFast 2.0
BATTERY TYPE
Two slots for BP-9XX series batteries
DC POWER INPUT
+7 to +17 V DC via the integrated 2-pin DC-IN port
OPERATING TEMPERATURE
0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE
–20°C to 50°C (–4°F to 122°F)
STORAGE RELATIVE HUMIDITY
0% to 85% non-condensing
COLOR MANAGEMENT
Image Processing Pipeline 2 (IPP2)
Supports 33×33×33 3D LUTs
Supports import of CDLs
Supports 33×33×33 3D LUTs
Supports import of CDLs
AUDIO
Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Additional dual channel via integrated 3.5mm audio jack, uncompressed, 24-bit 48 kHz
Additional dual channel via integrated 3.5mm audio jack, uncompressed, 24-bit 48 kHz
REMOTE CONTROL
Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector
Genlock, Timecode-in, GPIO and Ctrl (RS232) via the integrated 9-pin EXT Port
Wired control via KOMODO Link Adaptor, using USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing camera control and live MJPEG preview video feed
Genlock, Timecode-in, GPIO and Ctrl (RS232) via the integrated 9-pin EXT Port
Wired control via KOMODO Link Adaptor, using USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing camera control and live MJPEG preview video feed
MONITOR OUTPUT
Integrated 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 24p
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 24p
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
MONITOR OPTIONS
Integrated 2.9" 1440x1440 touchscreen LCD with preview and camera control
Wireless live preview video feed via 2.4Ghz/5Ghz WiFi for framing
Wireless live preview video feed via 2.4Ghz/5Ghz WiFi for framing
RED CONTROL
Access full camera controls and live preview from iOS or Android devices.
Available from the Apple App Store and Google Play Store (coming soon). RED Control works wirelessly or wired via the KOMODO Link Adaptor (sold separately).
Available from the Apple App Store and Google Play Store (coming soon). RED Control works wirelessly or wired via the KOMODO Link Adaptor (sold separately).

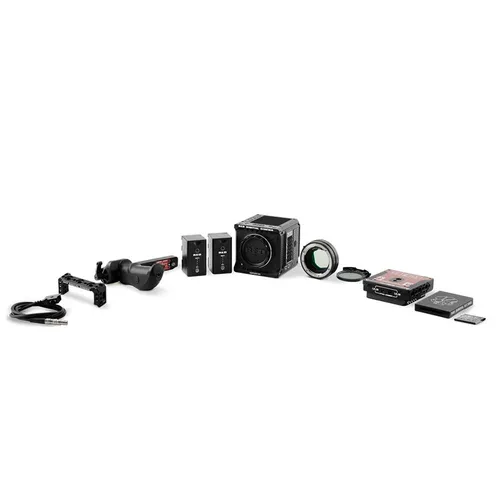

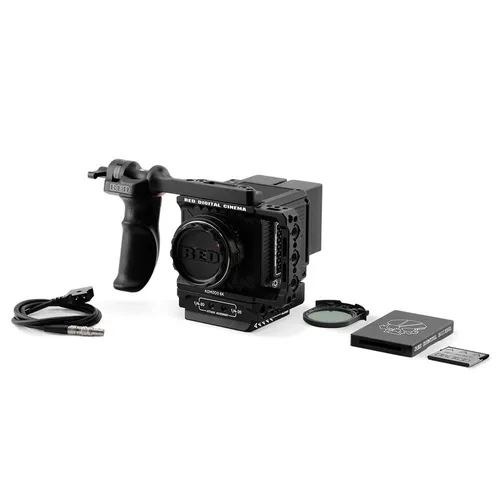

Below are the items included with this product
- KOMODO® 6K Camera System
- Canon RF to EF Adapter w/ Variable ND Filter
- Canon Drop-In Clear Filter
- KOMODO® Outrigger Handle
- KOMODO® Wing Grip
- KOMODO® Expander Module
- RED® PRO CFast 512GB
- RED® CFast 2.0 Card Reader
- RED® PTap-to-Power Cable 6'
- REDVOLT® BP x 2
- 1-Year Standard Warranty
