RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD
Our Part Number:
RED1006
Manufacturer Part No:
730-0029-D
Backorder
qty.
Notify me about price drops

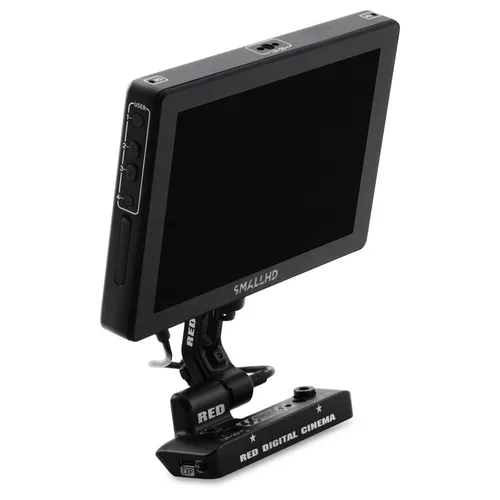

The DSMC3™ RED® Touch 7.0" LCD offers an HD viewing experience for recording and viewing footage on the V-RAPTOR® camera system. A 1920 x 1200 resolution display panel with peak brightness of 1300 nits and high pixel density (at 322 ppi), not only provides the optimal experience when viewing footage, but also features 100% DCI-P3 Color Gamut coverage for tremendous color accuracy. The monitor also features full control over the camera via the new responsive menu system powered by SmallHD PageOS, bringing features like Waveform, Vectorscope, Histogram, False Color, Color Picker, Pixel Zoom and more.

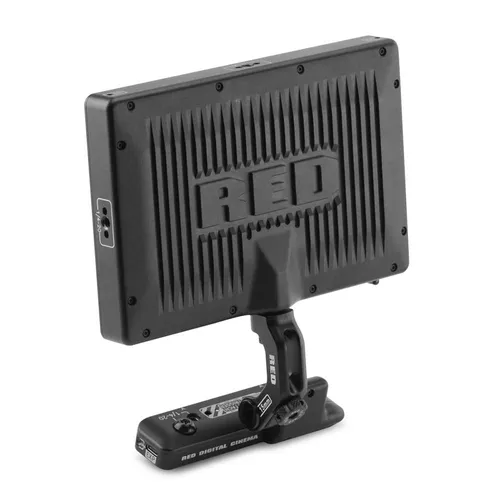

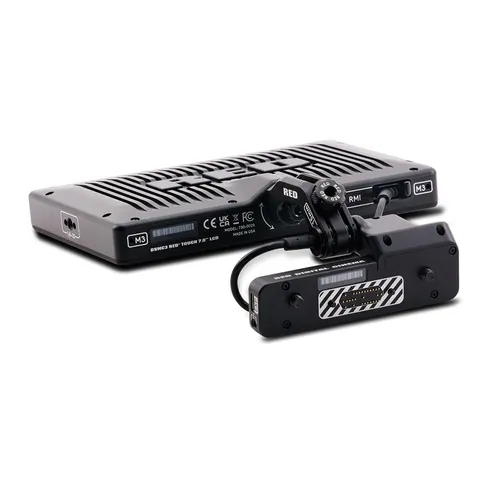

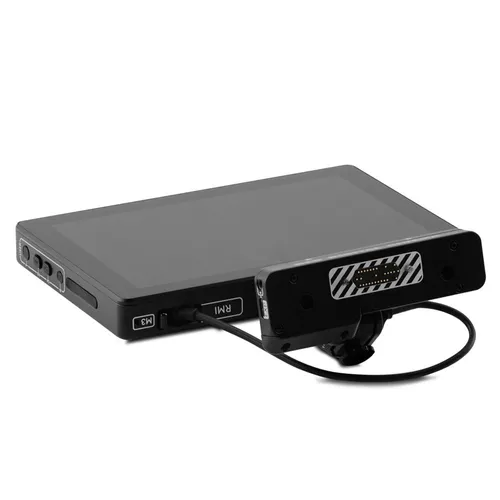

The lightweight display features a removable integrated tilt arm with the capability to rotate 180 degrees for versatile mounting options. It also boasts the latest generation pogo pins to provide power and video to the monitor in addition to the ability to connect via a single-locking USB-C style DSMC3 RMI Cable for video and power. No additional SDI or power cables are needed.
The lightweight display features a removable integrated tilt arm with the capability to rotate 180 degrees for versatile mounting options. It also boasts the latest generation pogo pins to provide power and video to the monitor in addition to the ability to connect via a single-locking USB-C style DSMC3 RMI Cable for video and power. No additional SDI or power cables are needed.
CAMERA COMPATIBILITY
KOMODO-X, V-RAPTOR, V-RAPTOR XL
MONITOR DIMENSIONS
Height: 4.67 in. (118.70 mm)
Width: 7.09 in. (180.10 mm)
Depth: 1.13 in. (28.80 mm)
Width: 7.09 in. (180.10 mm)
Depth: 1.13 in. (28.80 mm)
ARM DIMENSIONS
Height: 1.18 in. (30.00 mm)
Width: 2.40 in. (61.00 mm)
Depth: .70 in. (17.50 mm)
Width: 2.40 in. (61.00 mm)
Depth: .70 in. (17.50 mm)
RED MONITOR INTERFACE DIMENSIONS
Height: 1.67 in. (42.50 mm)
Width: 4.25 in. (108.00 mm)
Depth: 1.51 in. (38.23 mm)
Width: 4.25 in. (108.00 mm)
Depth: 1.51 in. (38.23 mm)
WEIGHT
Monitor approximately 1.25 lbs (568.0 g)
Arm approximately .07 lbs (30.1 g)
RED Monitor Interface approximately .28 lbs (126 g)
Arm approximately .07 lbs (30.1 g)
RED Monitor Interface approximately .28 lbs (126 g)
MATERIAL
Aluminum Alloy
RESOLUTION
1920 x 1200
PIXEL DENSITY
322 pixels per inch (ppi)
REFRESH RATE
60 Hz
RESPONSE TIME
25 ms
CONTRAST
1250:1
BRIGHTNESS
1300 cd/m2
COLOR DEPTH
10-bit processing (8-bit panel)
COLORS
100% DCI-P3[1]
VIEWING ANGLE
± 160° all axes
DISPLAY ORIENTATION
Landscape, 180° rotation
TOUCH
Projected Capacitive (pCap), multi-touch
CAMERA CONNECTION
Power and Communication via RMI cable
MOUNTING
15mm Rail
HOOD MOUNTING
4x M3 Mounting Points
BUTTONS
4 Buttons Function 1,2,3 & 4
POWER CONSUMPTION
Max 18.3W
OPERATING TEMPERATURE
0°C to 38°C (32°F to 104°F)
STORAGE TEMPERATURE
–18°C to 49°C (–0°F to 120°F)
OPERATING HUMIDITY
0% to 85%, non-condensing
STORAGE HUMIDITY
0% to 85%, non-condensing
FIRMWARE REQUIREMENT
Compatible with camera firmware V1.1 or later
Below are the items included with this product
- RED Monitor Interface
- Arm
- DSMC3 RMI Cable
