RED DIGITAL CINEMA Compact EVF
Our Part Number:
RED1007
Manufacturer Part No:
730-0030
Backorder
qty.
Notify me about price drops

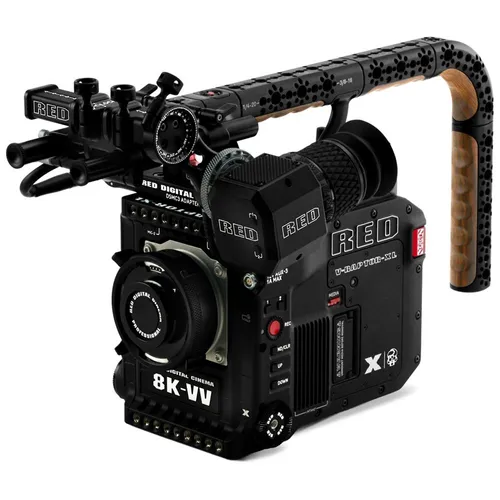

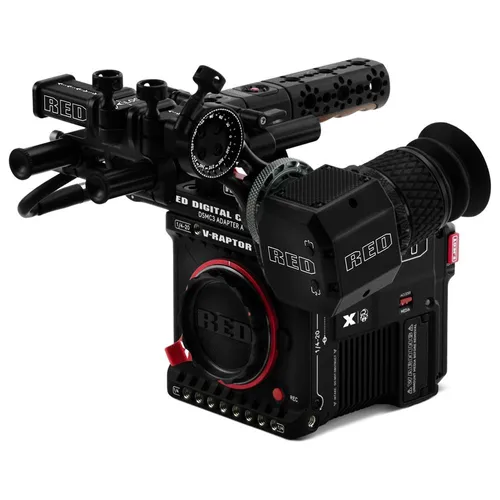

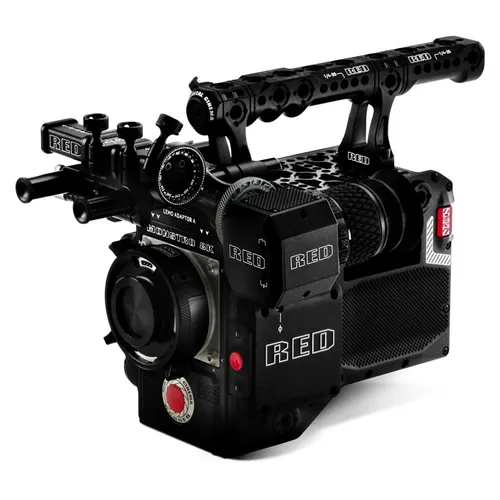

The RED® Compact EVF Pack is compatible with KOMODO-X™, V-RAPTOR®, and V-RAPTOR XL cameras. The pack includes the RED Compact EVF, a DSMC3™ Adapter A, a RED EVF Mount, and an 18” Right-to-Straight EVF cable.
This pack is ideal for users looking for a highly flexible EVF monitoring solution for their DSMC3 camera system. The EVF Mount allows you to easily position the RED Compact EVF to find your optimal operating configuration. The DSMC3 Adapter A provides a single 16-pin output to supply power, video, and data to the EVF. The RED Compact EVF gives a clear, sharp viewing experience, and allows the operator to control and adjust key camera parameters such as FPS, ISO, and White Balance, or to quickly toggle user-assignable camera features with the integrated rear buttons.
NOTE: A 15mm mounting bracket is not included. Refer to RED 15mm Top Handle Bracket and V-RAPTOR XL Top 15 mm LWS Rod Support Bracket for DSMC3 mounting options.
This pack is ideal for users looking for a highly flexible EVF monitoring solution for their DSMC3 camera system. The EVF Mount allows you to easily position the RED Compact EVF to find your optimal operating configuration. The DSMC3 Adapter A provides a single 16-pin output to supply power, video, and data to the EVF. The RED Compact EVF gives a clear, sharp viewing experience, and allows the operator to control and adjust key camera parameters such as FPS, ISO, and White Balance, or to quickly toggle user-assignable camera features with the integrated rear buttons.
NOTE: A 15mm mounting bracket is not included. Refer to RED 15mm Top Handle Bracket and V-RAPTOR XL Top 15 mm LWS Rod Support Bracket for DSMC3 mounting options.
CAMERA COMPATIBILITY
KOMODO-X, V-RAPTOR, V-RAPTOR XL
DIMENSIONS
Height: 2.43 in. (61.7 mm)
Width: 2.46 in. (62.5 mm)
Depth: 4.8 in. (121.9 mm)
Width: 2.46 in. (62.5 mm)
Depth: 4.8 in. (121.9 mm)
WEIGHT
0.8 lbs (360 g)
MATERIAL
Aluminum
CAMERA MOUNTING
Via integrated attachment wheel and RED EVF Mount or 1/4-20 mount points on included Mount Plate.
RESOLUTION
1920 (width) x 1080 (height)
BIT DEPTH (COLOR)
8-bit
CONTRAST RATIO
> 10000:1
DISPLAY RATE
60 fps
OPTICS
Fully coated optics with > 32° field of view, infinity focus and eye cup that accommodates standard 1.6” to 1.8” diameter eye cushions
DIOPTER RANGE
– 2.5 to + 2.5 diopter correction range
BUTTONS
Two buttons for camera control or user defined buttons
POWER CONSUMPTION
2.5 W (max)
OPERATING TEMPERATURE
32°F to 104°F (0°C to 40°C)
STORAGE TEMPERATURE
–4°F to 122°F (–20°C to 50°C)
OPERATING HUMIDITY
0% to 85%, non-condensing
STORAGE HUMIDITY
0% to 85%, non-condensing

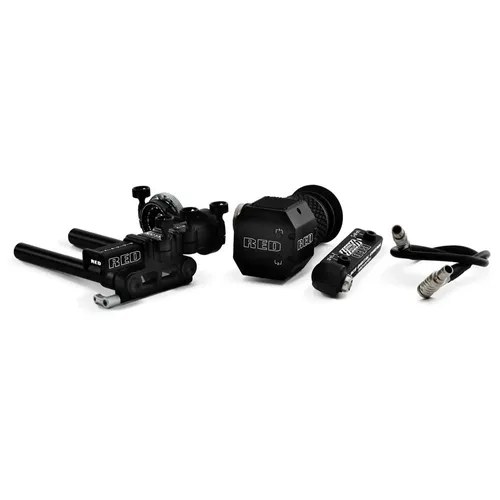

Below are the items included with this product
- RED Compact EVF
- 1/4-20 Mount Plate
- RED EVF Mount
- 15 mm Rods (2.3 in. / 60 mm) x 2
- DSMC3 Adapter A
- EVF Cable Right-to-Straight 18"
