Screen Size

5.5"

Dimension

145.4x120.9x38.5mm

Viewing Angle

178°H/178°V

Brightness

2200nit

Resolution

1920*1080

Contrast Ratio

1000:1

Weight

383g

Color Depth

10bit(8+2 FRC)

Maximum Power

14W

Material

Aluminum alloy + Toughened glass

Input Voltage

4pin Aviation Connector IN 7.4-24V

Output Voltage

4pin Aviation Connector OUT 7.4V(NPF)

Video Signal Input

SDI/HDMI

Video Signal Output

SDI

Motor Control Port

5pin Aviation Connector

Camera Control Port

Mini USB 10pin

USB-A

Upgrade Firmware/Load LUT

Antenna

2.4G

HDMI Signal

1920*1080p@23.97Hz,24Hz,25Hz,
29.97Hz,30Hz,50Hz,59.94Hz,60Hz
1920*1080psf@23.97Hz,24Hz,
25Hz,29.97Hz,30Hz
1920*1080i@50Hz,59.94Hz,60Hz
1280*720p@50Hz,59.94Hz,60Hz
720*576i@50Hz
720*576p@50Hz
720*480p@59.94Hz,60Hz
720*480i@59.94Hz,60Hz

SDI Signal

1920*1080p@50fps,59.94fps,60fps
1920*1080p@50Hz,59.94Hz,60Hz
1920*1080p@23.98Hz,24Hz,25Hz,

29.94Hz,30Hz YUV444/YUV422/RGB444

1920*1080i@50Hz,59.94Hz,60Hz
YUV444/YUV422/RGB444
1280*720p@50Hz,59.94Hz,60Hz
YUV444/YUv422/RGB444

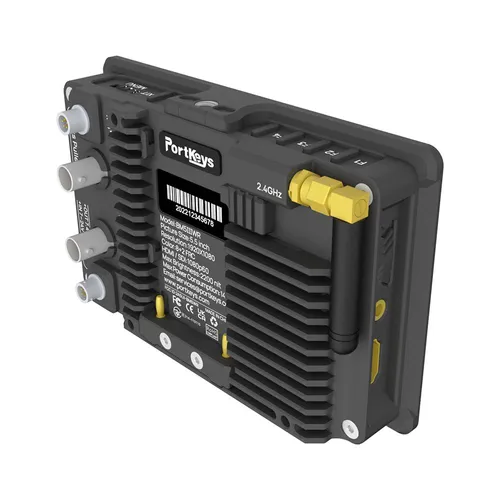

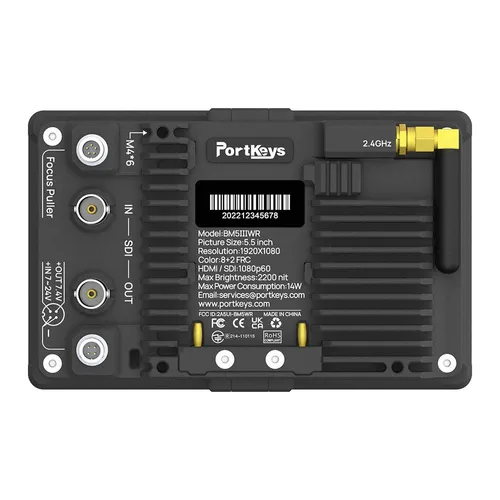

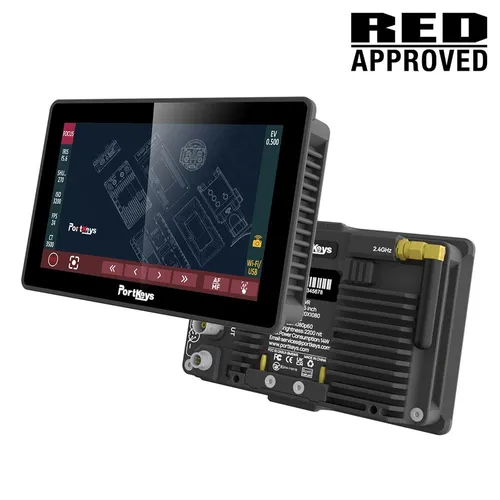

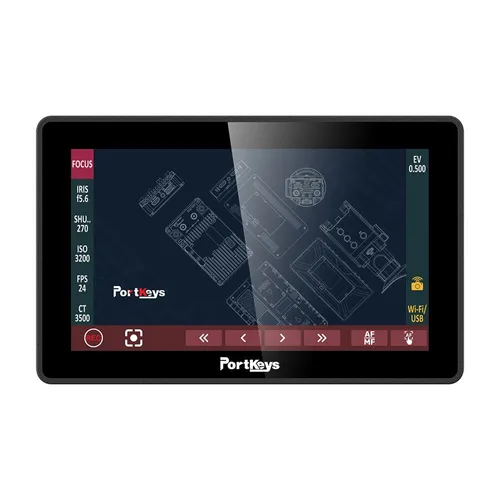

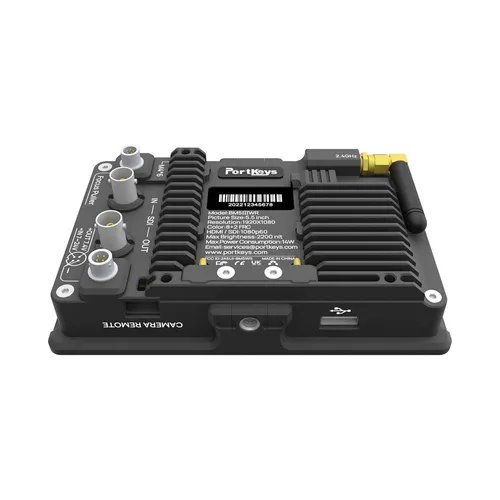

Open Box PortKeys BM5 III WR 5.5" HDMI Red Compatible Touchscreen Monitor
