Weight and Dimensions

Without batteries

709g / 25oz.

Dimensions (W x H x D mm)

214 x 127 x 45mmmm

Construction Polycarbonate

ABS

Mounting points

1/4”-20 screw mount. 1x top and 1x bottom

Power

Operating power

Polycarbonate ABS

Compatible batteries

NP-F series and supporting accessories.

Input voltage (battery)

6.2V to 16.8V

Battery time* (based on 7.4V)

5200mAh – up to 1.5hrs (monitor & record 4K 30p)
7800mAh – up to 2.2hrs (monitor & record 4K 30p)

DC In

1 x DC in (6.2 - 16.8V)

Touchscreen

Screen

Capacitive touch

Size

7.2”

Resolution / PPI

1920 x 1080 / 325ppi

Aspect ratio

16:9 native

Contrast ratio

1,000,000:1 (Zone backlight turned on)

Color Gamut

Up to Wide color gamut (105% DCI-P3

Look up table (LUT) support

3D LUT (.cube format)

Anamorphic de-squeeze

2x, 1.5x, 1.33x

Dynamic AtomHDR Technology

Backlight Direct

LED

Zones

360 direct backlight individual LEDs

LEDs

Wide Color Calibrated D65 or D9

Bit depth

10-bit (8+2 FRC)

Color

DCI-P3 105%

Brightness

1500nit (+/- 10%)

Control

On the fly real-time brightness analysis for LED contro

HDR Conversion

Log/RAW to HLG or PQ

HDR Monitoring Technology

Gamma

Sony SLog / SLog2 / SLog3 Canon CLog / CLog2 / Clog3 ARRI
Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400
/ LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 /
LogCEI1280 / LogCEI1600 Panasonic Vlog JVC JLog1 RED
Log3G10 / RED LogFilm FujiFilm F-log Nikon N-Log PQ10k
HLG

Gamut

Sony SGamut / SGamut3 / SGamut3.cine Canon Cinema /
DCI P3 / DCI P3+ Nikon Bt2020 Panasonic V Gamut Arri Alexa
Wide Gamut Rec709 / BT.2020 JVC RED WideGamut / RED
DragonColor / DragonColor2 / RED Color2 / RED Color3 /
RED Color4

Anamorphic de squeeze

2x, 1.5x, 1.33x

Technology

IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit

AtomHDR

Yes

HDR Monitoring (Gamma)

Sony SLog / SLog2 / SLog3
Canon CLog / CLog2 / Clog3
ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 /
LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 /
LogCEI1000 / LogCEI1280 / LogCEI1600
Panasonic Vlog
JVC JLog1
RED Log3G10 / RED LogFilm
FujiFilm F-log
Nikon N-Log
PQ10k
HLG

HDR Monitoring (Gamut)

Sony SGamut / SGamut3 / SGamut3.cineCanon Cinema / DCI P3 / DCI P3+Panasonic V GamutArri Alexa Wide GamutRec709 / BT.2020JVCRED WideGamut / RED DragonColor / DragonColor2 /RED Color2 / RED Color3 / RED Color4 /

Video Input / Loop out

HDMI

HDMI 1 x HDMI (2.0)

SDI

Quad Link 4 x 3G/6G SDI*, 4 x 3G-SDI, 2x 12G single link SDI

Signal

Uncompressed true 10-bit or 8-bit 422 (camera dependent)

Genlock

Genlock input signal and output signal

Video Output (Playout)

HDMI

1 x HDMI (2.0)

SDI

2x 4K-SDI 12G or HD-SDI 3G/6G

HDMI

Uncompressed true 10-bit or 8-bit 4:2:2 (camera dependent)

Supported Codecs & Frame Rates (Record & Playback)

Raw to:

ProRes RAW
ProRes
CinemaDNG
(CDNG up to 30p only)
Avid DNxHD

Sony FS700, FS-5, FS-7, FS-7MkII

4K DCI; 24/25/30/50/60p
4K UHD; not supported in camera
2K; 24/25/30/50/60/100/120/200/240p
1080; not supported in camera

Canon C300MKII/C500 CDNG

4K DCI; 24/25/30p
4K UHD; 24/25/30p
2K; not supported in camera
1080; not supported in camera

Panasonic VaricamLT, EVA1

5.7K DCI; 24/25/30p (EVA1 ProRes RAW only)
4K DCI; 24/25/30/50/60p
4K UHD; 24/25/30/50/60p
2K; 24/25/30/50/60/100/120/200/240p 1080; not supported
in camera

Supported base resolution & FPS from cameras

4K DCI: 23.98/29.9/59.94p
4K UHD: 23.98/29.9/59.94p
2K DCI: 23.98/29.9/59.94p
1080p: 23.98/29.9/59.94p

Supported FPS & resolution from gaming consoles and graphic cards

1080p; 24/25/30/50/60/100/120

Onboard Processing

Pulldown removal

24/25/30pSF > 24/25/30p (2:2 pulldown) 60i > 24p (3:2 pulldown)

4K UHD downscale for HD monitoring

Yes - Loop-out and playback (Not available in RAW)

Audio Out

HDMI

2 or 8ch 24-bit, camera dependent

SDI

12ch 48kHz 24-bit

Audio

2ch balanced XLR analogue in/out
Dynamic range >90dB
Max signal level +24dBu
Max analogue gain +52dB
48V Phantom Power for Mic

Remote Start/Stop

HDMI

Auto HDMI Trigger
Supported Protocols – Dolby Vision, Canon, Sony, Atomos
Open Standard

SDI

SDI trigger camera selectable

Other

LANC control - Slave

Playback

Playlist / Genlock / LTC

Yes / Yes / Yes

CDNG (Recorded content)

No support

ProRes (Recorded content)

All recorded files can playback. Playback in slow motion >= 100fps

DNxHR / DNxHD (recorded content)

All recorded files can playback. Playback in slow motion >= 100fps

Recording

Pre-roll record

Yes (HD 8s, 4K 2s)

Custom time lapse

Yes

Meta data tagging

Yes (10 tags available)

Supported media

2.5” SSD/HDD compatibility depends on recording format,
resolution and frame rate. Visit atomos.com/drives for list of
tested and approved drives

Master caddy case

Master Caddy II (included)

Master caddy dock

75mm x 105mm x 12mm

Supported applications

2.5” SATA to USB 2.0/3.0

Warranty

1 Year from date of purchase The main product, not including the IPS screen.

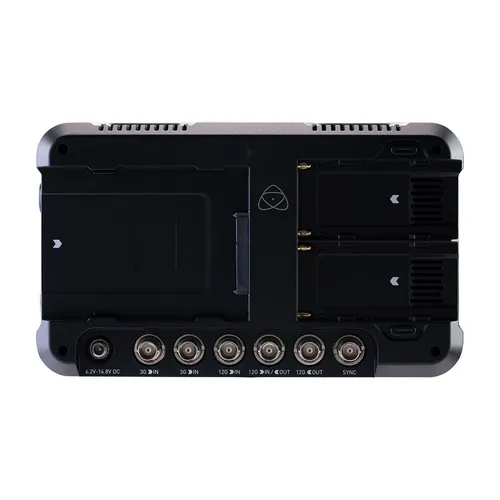

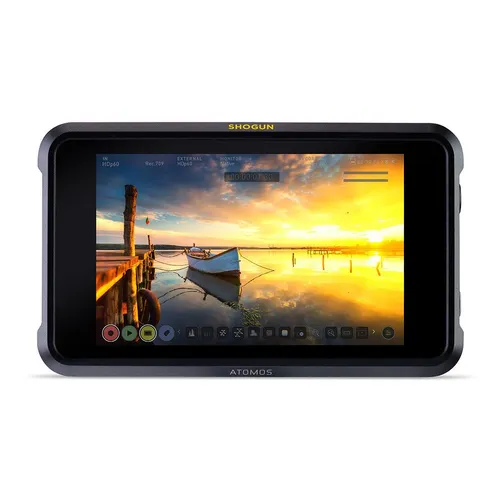

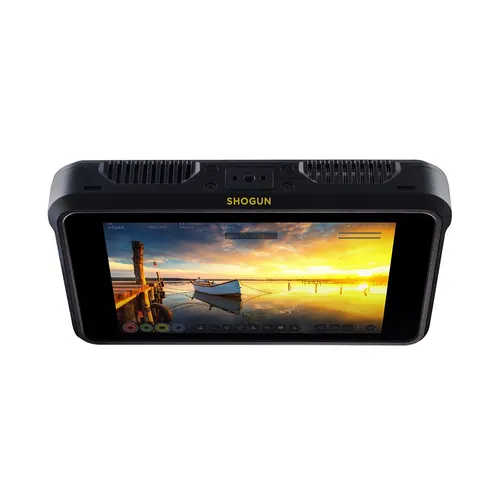

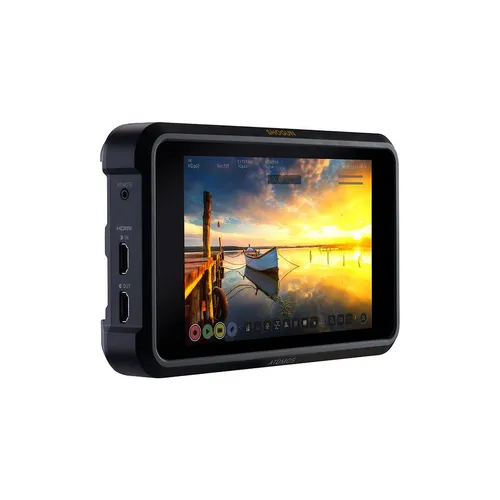

Atomos Shogun 7" HDR Pro/Cinema Monitor-Recorder-Switcher
