Photo & Video

Sensor Size

1/1.1" Square Sensor

Screen

2.32'' OLED Screen

Aperture

F2.0

35mm Equivalent Focal Length

7.78mm

Video Resolution (360 Mode)

360 Video Mode:
8K: 7680x3840@50/48/30/25/24fps
6K: 6016x3008@60/50/48/30/25/24fps
4K: 3840x1920@100/60/50/48/30/25/24fps

PureVideo Mode:
8K: 7680x3840@30/25/24fps
K: 5760x2880@30/25/24fps
4K: 3840x1920@30/25/24fps

Bullet Time:
8K: 7680x1920@100fps
6K: 6016x3008@120fps
4K: 3840x960@240fps

Timelapse:
16K：15360×7680@30/25fps[15]
8K: 7680x3840@30/25fps

Video Resolution (Flat Mode)

Video Mode:
5K (4:3): 5120x3840@60/50/30/25fps
5K (3:4): 3840x5120@30/25fps
5K (16:9): 5120x2880@60/50/30/25fps
5K (9:16): 2880x5120@30/25fps
4K (4:3): 3840x2880@120/100/60/50/30/25fps
4K (3:4): 2880x3840@60/50/30/25fps
4K (16:9): 3840x2160@120/100/60/50/30/25fps
4K (9:16): 2880x3840@60/50/30/25fps
2.7K (4:3): 2688x2016@120/100/60/50/30/25fps
2.7K (3:4): 2016x2688@60/50/30/25fps
2.7K (16:9): 2688x1520@120/100/60/50/30/25fps
2.7K (9:16): 1520x2688@60/50/30/25fps

InstaFrame 2.0:
Flat 4K + 360 Video 8K Backup: 30/25/24fps
Flat 4K (16:9/9:16/2.35:1): 60/50/48/30/25/24fps
Night scene video recording:
4K (4:3): 3840x2880@60/50/30/25fps
4K (3:4): 2880x3840@60/50/30/25fps
4K (16:9): 3840x2160@60/50/30/25fps
4K (9:16): 2880x3840@60/50/30/25fps
2.7K (4:3): 2688x2016@60/50/30/25fps
2.7K (3:4): 2016x2688@60/50/30/25fps
2.7K (16:9): 2688x1520@60/50/30/25fps
2.7K (9:16): 1520x2688@60/50/30/25fps

PureVideo：
4K (4:3): 3840x2880@60/50/30/25fps
4K (3:4): 2880x3840@60/50/30/25fps
4K (16:9): 3840x2160@60/50/30/25fps
4K (9:16): 2880x3840@60/50/30/25fps
2.7K (4:3): 2688x2016@60/50/30/25fps
2.7K (3:4): 2016x2688@60/50/30/25fps
2.7K (16:9): 2688x1520@60/50/30/25fps
2.7K (9:16): 1520x2688@60/50/30/25fps

FreeFrame Video:
6K (16:9, 9:16, 4:3, 3:4, 1:1): 6016x6016@60/50/30/25fps
4K (16:9, 9:16, 4:3, 3:4, 1:1): 3040x3840@60/50/30/25fps

Maximum Photo Resolution

360 Photo: 120MP (2:1, 15520×7760)
Flat Photo: 42MP (1:1, 6528×6528)

Video Format

Flat Mode: MP4
360 Mode: INSV

Photo Format

INSP (can export via mobile app or Studio desktop software)
DNG

Video Mode

360 Mode: Video, PureVideo, Timelapse, TimeShift, Bullet Time, Loop Recording, Road Mode
Flat Mode: Video, InstaFrame 2.0, PureVideo, FreeFrame Video, Loop Recording

Photo Mode

360: Photo, Interval, Starlapse
Flat: Photo

Color Preset

Standard (Rec.709), Dolby Vision, I-Log

Video Encoding

H.265

Maximum Video Bitrate

240Mbps

Exposure Compensation

±4EV

ISO Range

100-6400

Shutter Speed

Shutter Speed: 1/8000 - 120s
Video Recording: 1/8000 - Frame Rate Limited Shutter

White Balance

000K-10000K

Audio Mode

Intelligent Wind Noise Reduction - Strong
Intelligent Voice Enhancement
Stereo
360° Audio
Engine Sound Enhancement

Audio Format

48 kHz, 16bit, AAC

Hardware

Weight

196g

Dimensions (Width × Height × Depth)

With lens: 2×3.9×1.6in (50.0×100.0×40.0mm)
Without lens: 2×3.9×1.0in (50.0×100.0×26.4mm)

Memory

64GB built-in storage (available storage: 47GB)
SD Card: microSD (Supports UHS-I V30 or higher)

Battery Capacity

2600mAh

Charging Time

24mins to 80%
35mins to 100%
* 30W with PPS fast charging used.

Endurance Mode Operating Time

8K30fps, 140mins

Operating Ambient Temperature

-4°F to 104°F (-20℃ to 40℃)

Waterproofing

Waterproof up to 66ft (20m)

Bluetooth

BLE 5.3

Wi-Fi

Wi-Fi 6
802.11a/b/g/n/ac/ax

USB

Type-C USB 3.1

Gyroscope

6-axis gyroscope

Interface

1/4" threaded interface
Magnetic mounting

Color

Midnight Black A
rctic White

Compatible Devices

Mobile Phones/Tablets
iOS Devices: Compatible iOS mobile devices equipped with the A12 chip or above, and iOS 13.0 or above, including iPhone XS, iPhone XS Max, iPhone 11, iPhone 11 Pro, iPhone 11 Pro Max, iPhone 12, iPhone 12 Pro, iPhone 12 Pro Max, iPhone 12 mini, iPhone 13, iPhone 13 Pro, iPhone 13 Pro Max, iPhone 13 mini, iPhone 14, iPhone 14 Plus, iPhone 14 Pro, iPnone 14 Pro Max, iPhone 15, iPhone 15 Plus, iPhone 15 Pro, iPhone 15 Pro Max, iPhone 16, iPhone 16 Plus, iPhone 16e, iPhone16 Pro, iPhone 16 Pro Max, iPhone 17, iPhone 17 Pro, iPhone 17 Pro Max, iPhone Air, iPhone 17e, iPad Air (2020), iPad Pro iPad Pro and newer models.

Android:
Compatible with Android mobile devices that meet the following capabilities:
• Kirin 990 chips and above, including Huawei Mate 30, P40, or newer models.
• Snapdragon 855 chips and above, including Samsung Galaxy S10, Xiaomi 9, or newer models.
• Exynos 2200 chips and above, including Samsung Galaxy S22, S22 Ultra, and newer models.
(Must be using Android 10.0, HarmonyOS 2.0.0 or higher. Does not support HarmonyOS NEXT)

Note:
1. Devices that do not meet the above requirements may still be able to use the app to control the camera. However, the performance of some processor-intensive and AI-powered features may be sub-optimal.
2. After testing, phones equipped with Qualcomm SDM765 5G chips have poor hardware decoding capabilities and are not supported for use, such as OPPO Reno 3 5G.
3. App installation requires a mobile phone with a 64-bit system. A 32-bit system does not support app installation.

Bluetooth Headset

Supports Helmet Bluetooth Headsets
SENA: C30, ST1, 60S, 50S, 10S
Cardo: Siprit, NEO, 2X, 4X
Airide: G7+
ASMAX: F1
Lexin Moto: G4
Vimoto: V9X, V9S
Other Bluetooth headphones
Apple: AirPods Pro 3, AirPods Pro 2, AirPods 2
Shokz: S810
Samsung: Galaxy Buds 2
JLab Audio: GO Air Sport

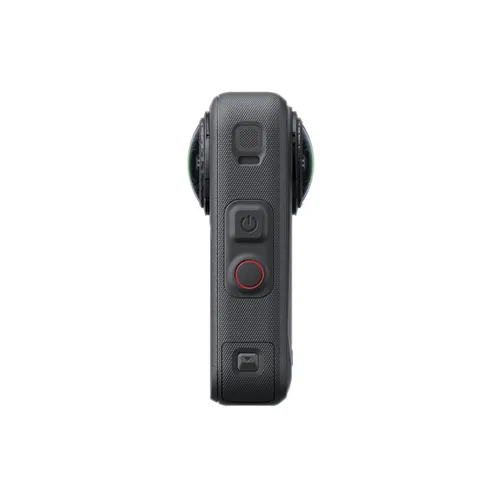

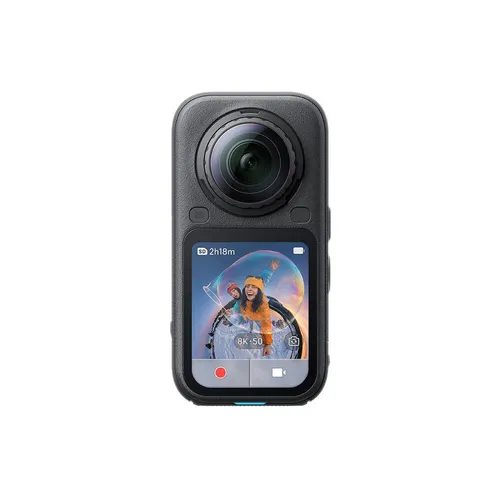

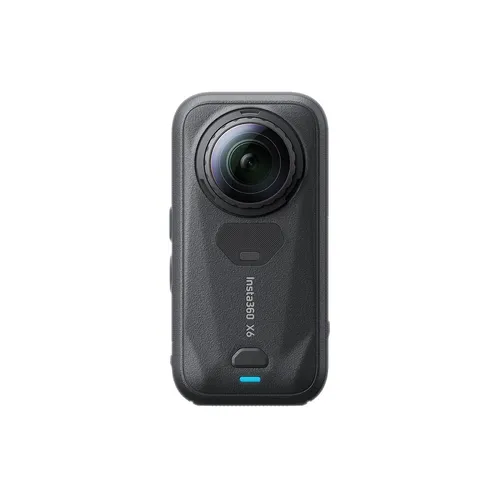

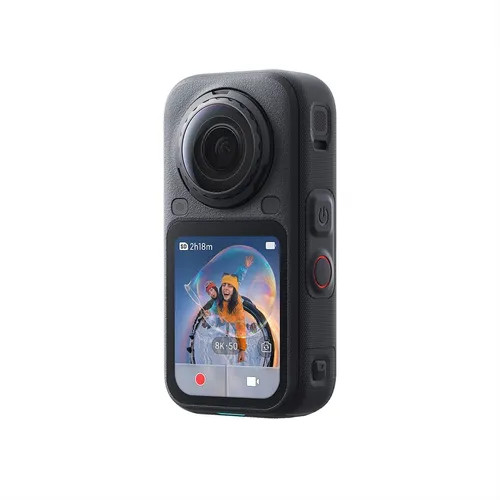

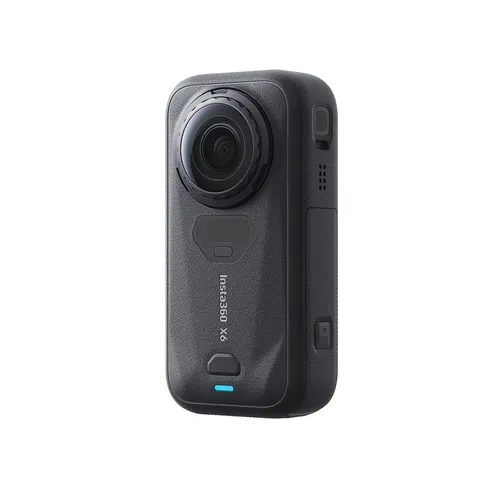

Insta360 X6 8K Action Camera Standard Bundle - Midnight Black
