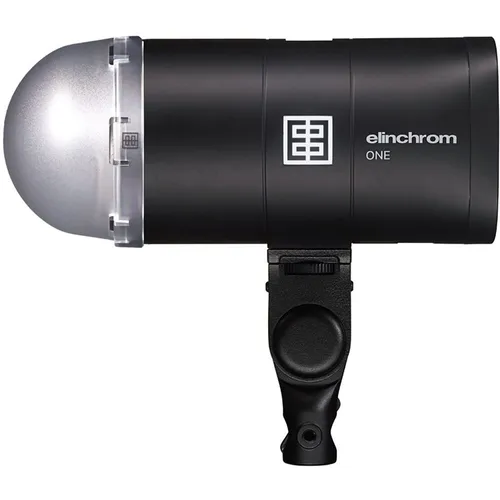

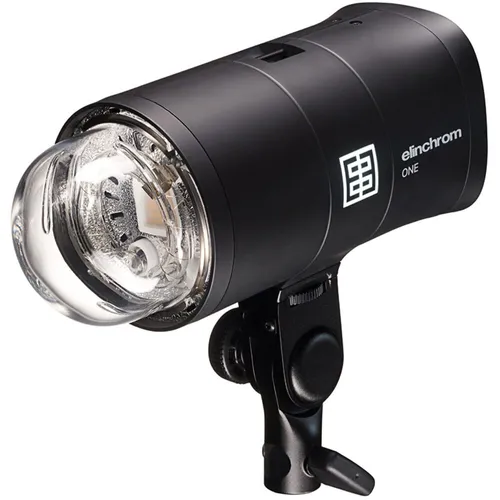

Elinchrom ONE Off Camera Flash
Our Part Number:
ELC1238
Manufacturer Part No:
EL20932.1
Backorder
qty.
Notify me about price drops
Follow the story wherever it takes you.
A portable, rugged and dependable off-camera flash equipped for your next adventure.
With only 1.5 kg (3.3 lbs), the ONE merges 131Ws of capacity with features including an integrated Li-ion battery, USB-C Active Charging, TTL, HSS, and a streamlined touch interface into a low profile housing. The supremely compact and lightweight Elinchrom ONE is equipped for your next adventure. Wherever that will be.
Keep a low profile
Add the versatility of an off-camera flash with light shaping capabilities. Similar in size and weight (1.5kg/3.3 lbs) to a 70-200mm lens, the ONE is ready to travel with you anywhere and everywhere.
Brave the elements
Capable of producing 725 full-power flashes on a single charge, the ONE is ready for longer shoots. The Li-Ion battery is sealed for enhanced protection from the elements while on location.
Never lose momentum
With Active Charging, the ONE can be connected to any power source and continue shooting while charging regardless of the battery’s power level, keeping your workflow uninterrupted.
Navigate swiftly

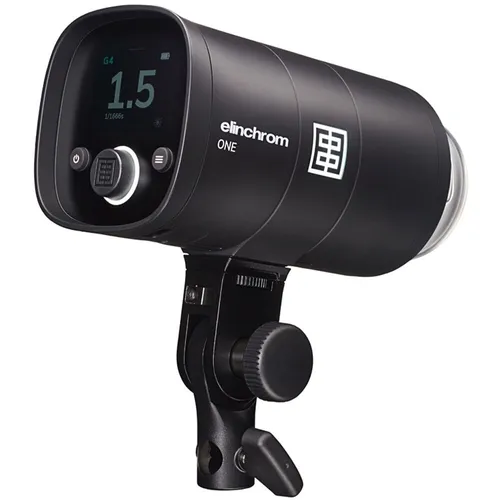

With a touchscreen and quick menu interface, experience streamlined access to the ONE’s settings to ensure you never miss a chance to capture the moment.
Portable like a 70-200 mm
Elinchrom ONE: 1.5 kg / 3.3 lb
70-200mm lens: 1.5 kg / 3.3 lb
The removable tilt head with a 7-8 mm umbrella mount detaches, making the ONE even more ergonomic for hand-holding.
Never lose momentum
Integrated Li-Ion battery
Enables up to 725 full-power flashes on a single charge and enhanced protection from the elements while on location.
Charge and continue shooting from any power source
Charge the Elinchrom ONE from any USB-C source without proprietary spare batteries or chargers and continue shooting while charging regardless of the battery’s power level.
Optimal light spread
Shaping light is at the heart of every great image you create. Designed around an unconcealed flash tube for optimal light spread, the Elinchrom ONE ensures you experience the beautiful light quality Elinchrom is known for.
Your choice of light shapers
Engineered to use the newly developed Elinchrom OCF modifier mount, the Elinchrom ONE is also natively compatible with most Profoto® light shapers, greatly expanding your selection of available light shaping tools.
Do more with less
Engineered for peak efficiency, its 131 Ws of capacity generates a light output usually seen in 200+ Ws units. At 1 meter (3.3ft) and 100 ISO, the ONE can achieve F-11.9, with the Diffusion Dome attached, and when combined with the HP Reflector, the achievable F-Stop climbs to F-45.2.
A portable, rugged and dependable off-camera flash equipped for your next adventure.
With only 1.5 kg (3.3 lbs), the ONE merges 131Ws of capacity with features including an integrated Li-ion battery, USB-C Active Charging, TTL, HSS, and a streamlined touch interface into a low profile housing. The supremely compact and lightweight Elinchrom ONE is equipped for your next adventure. Wherever that will be.
Keep a low profile
Add the versatility of an off-camera flash with light shaping capabilities. Similar in size and weight (1.5kg/3.3 lbs) to a 70-200mm lens, the ONE is ready to travel with you anywhere and everywhere.
Brave the elements
Capable of producing 725 full-power flashes on a single charge, the ONE is ready for longer shoots. The Li-Ion battery is sealed for enhanced protection from the elements while on location.
Never lose momentum
With Active Charging, the ONE can be connected to any power source and continue shooting while charging regardless of the battery’s power level, keeping your workflow uninterrupted.
Navigate swiftly
With a touchscreen and quick menu interface, experience streamlined access to the ONE’s settings to ensure you never miss a chance to capture the moment.
Portable like a 70-200 mm
Elinchrom ONE: 1.5 kg / 3.3 lb
70-200mm lens: 1.5 kg / 3.3 lb
The removable tilt head with a 7-8 mm umbrella mount detaches, making the ONE even more ergonomic for hand-holding.
Never lose momentum
Integrated Li-Ion battery
Enables up to 725 full-power flashes on a single charge and enhanced protection from the elements while on location.
Charge and continue shooting from any power source
Charge the Elinchrom ONE from any USB-C source without proprietary spare batteries or chargers and continue shooting while charging regardless of the battery’s power level.
Optimal light spread
Shaping light is at the heart of every great image you create. Designed around an unconcealed flash tube for optimal light spread, the Elinchrom ONE ensures you experience the beautiful light quality Elinchrom is known for.
Your choice of light shapers
Engineered to use the newly developed Elinchrom OCF modifier mount, the Elinchrom ONE is also natively compatible with most Profoto® light shapers, greatly expanding your selection of available light shaping tools.
Do more with less
Engineered for peak efficiency, its 131 Ws of capacity generates a light output usually seen in 200+ Ws units. At 1 meter (3.3ft) and 100 ISO, the ONE can achieve F-11.9, with the Diffusion Dome attached, and when combined with the HP Reflector, the achievable F-Stop climbs to F-45.2.
Energy (Ws/J)
131
F-stop (1m, 100 ISO, HP Re ector 26 cm (10.2”), max. power)
45.2
F-stop (1m, 100 ISO, OCF Diffusion Dome, max. power)
11.9
Power range (F-stop)
5
Power range (Ws/J)
7 – 131
Power range display
0.1 – 4.3 (Elinchrom scale) / 5.8 – 10 (10 scale)
Power increments in Manual / TTL mode
0.1 F-stop / 0.3 F-stop
Flash duration t0.1 min/max power (Normal mode)
1/1530s – 1/155s
Flash duration t0.1 min/max power (Action mode)
1/7000s – 1/625s
Recycling time min./max.
0.06s / 0.9s
Flash mode
Manual / TTL / HSS (with Transmitter Pro)
Action mode
Faster ash duration over the power range
Flash colour temperature at max. power
5900 K (Action) / 5600 K (HSS)
Flash colour stability over the power range (all modes)
±150 K
Power stability
±0.5%
Auto power dumping
Adjusts power settings automatically in real time
Fan cooled
Smart proactive cooling
Input
USB-C
Battery
Li-Ion - Built-in - 41.04Wh
Battery capacity min/max power (LED lamp OFF)
9700 / 725
Battery capacity min/max power (LED lamp ON 100%)
3700 / 525
Battery charge status
On the display if ON and side logo if OFF
Charging time (with 65W USB-C Wall Charger)
60m. (80%) – 100m. (100%) / Fast charge (unit is ON) 80m. (80%) – 135m. (100%) / Slow charge (unit is OFF)
Charging time (with 18W 20000 mAh Power Bank)
80m. (80%) – 135m. (100%) / Fast charge (unit is ON) 105m. (80%) – 180m. (100%) / Slow charge (unit is OFF)
LED modeling lamp modes
ON/OFF, free, proportional, VFC
LED modeling lamp power
20W / equivalent to 120W / 3000 lm / CRI 95
LED modeling lamp color temperature
Presets from 2700 K to 6500 K
LED run time (LED only, min/max power)
10 hours / 90 minutes
Skyport (built-in)
20 frequency channels, 4 Groups
Skyport distance range (Transmitter Pro, manual mode)
Indoor: up to 60 m / Outdoor: up to 200 m
Bluetooth (built-in)
Version 4.2 / Compatible Studio Software Win, Mac, iOS
Umbrella tting (on tilt head)
7-8 mm
Dimensions with Diffusion Dome and tilt head
23 x 16.5 x 10.5 cm 9 x 6.5 x 4.1 inches
Dimensions without Diffusion Dome and tilt head
22.5 x 10 x 10 cm 8.5 x 3.9 x 3.9 inches
Weight (with/without tilt head)
1.5 kg – 3.3 lbs / 1.3 kg – 2.9 lbs

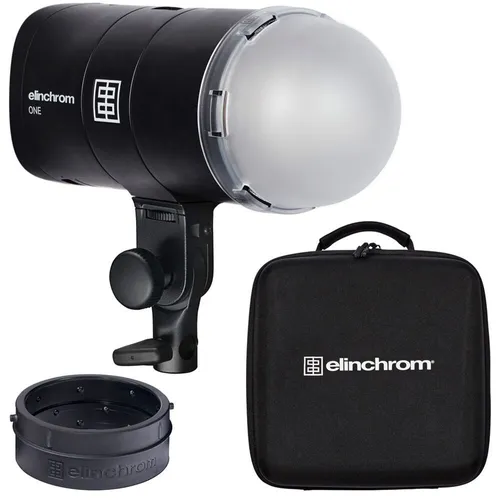

Below are the items included with this product
- Elinchrom ONE
- OCF Adapter
- OCF Diffusion Dome
- 65W USB-C Wall Charger
- USB-C Cable 1.8m (5.9')
- Elinchrom One Backpack
