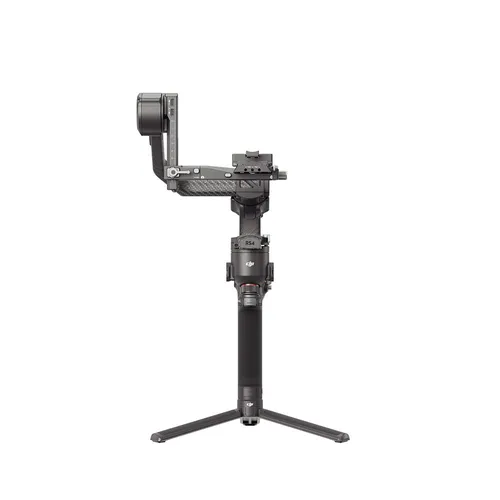

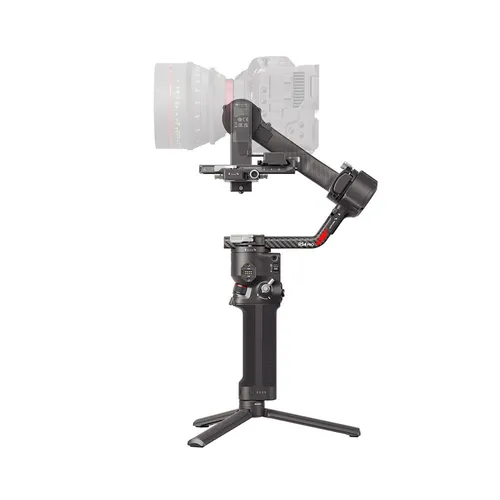

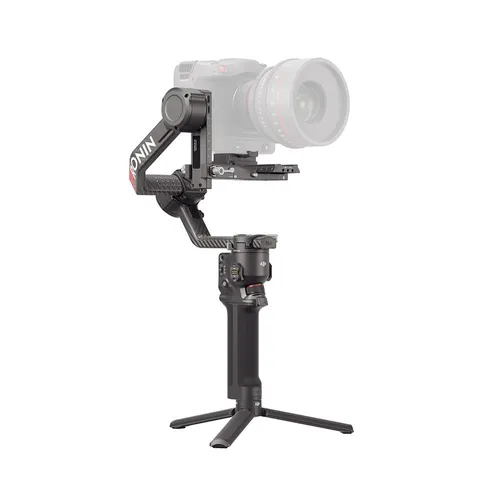

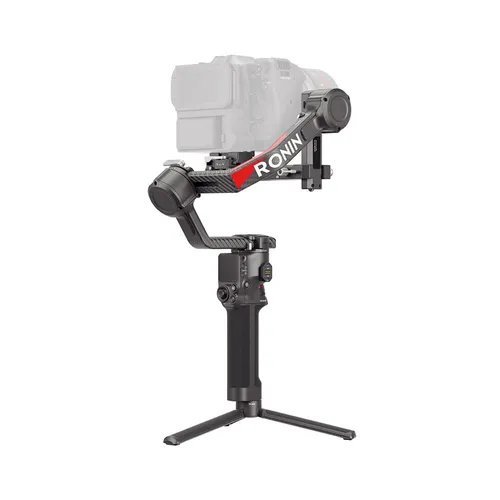

DJI RS4 Pro Gimbal Stabilizer

Manufacturer:
DJI
Our Part Number:
HLI1396
Manufacturer Part No:
284553
Pre-Order
Ship Time: New Item - Coming Soon
Quick Overview
- 2nd-Gen Native Vertical Shooting
- 4.5kg (10lbs) Payload Capacity With a 20% Increase in Motor Torque
- Supports Dual Focus & Zoom Motors With Remote Control
- LiDAR Focusing: 76,800 Ranging Points Within 20m
- LiDAR & Transmission Interconnectivity
$869.00
DJI RS4 Pro Gimbal Stabilizer DJI RS4 Pro Gimbal Stabilizer DJI RS4 Pro Gimbal Stabilizer DJI RS4 Pro Gimbal Stabilizer DJI RS4 Pro Gimbal Stabilizer
DJI RS4 Pro Gimbal Stabilizer
Transcend Potential
The DJI RS 4 Pro expansive flagship stabilizer integrates seamlessly with the DJI Focus Pro lens control system, DJI Transmission, and an extensive control ecosystem. This synergy empowers the film and television industry with a full-scale production solution that unites stabilization, transmission, monitoring, focusing, and control. It broadens the horizons of creative possibilities, enabling cinematographers to harness their full potential and showcase their skills.

2nd-Gen Native Vertical Shooting
The newly designed gimbal horizontal plate eliminates the need for additional accessories. Cinematographers can easily switch to vertical shooting.

Approx. 2.4x Battery Runtime, All-Scenario Solutions
Extend runtime up to 29 hours with the RS BG70 High-Capacity Battery Grip. And chose from various handheld configurations with RS SDK protocol.

Supports Dual Focus & Zoom Motors With Remote Control
Get precision focus and zoom simultaneously by installing two Focus Pro Motors. Pair with the Focus Pro Hand Unit and High-Bright Remote Monitor and get refined remote gimbal and focus control.

LiDAR Focusing: 76,800 Ranging Points Within 20 m
Solo cinematographers can now experience more accurate, distant, and intelligent LiDAR autofocus. The next-gen ActiveTrack Pro can firmly lock on to a moving subject.

LiDAR & Transmission Interconnectivity
With the Focus Pro LiDAR to DJI Transmission Cable Hub, RS 4 Pro can power LiDAR and the DJI Video Transmitter simultaneously, achieve LiDAR Waveform, and convenient control.

4.5kg (10lbs) Payload Capacity With a 20% Increase in Motor Torque
The carbon fiber axis arms are capable of accommodating mainstream mirrorless/cinema camera and lens setups. The gimbal provides greater power redundancy once balanced.
Peripheral
Accessory Port
Ronin Series Accessories (RSA)/NATO Ports
1/4"-20 Mounting Hole
‌Cold Shoe
Video Transmission/LiDAR Range Finder Port (USB-C)
RSS Camera Control Port (USB-C)
Focus Motor Port (USB-C)
Battery
Model: BG30-1950mAh-15.4V
Type: LiPo 4S
Capacity: 1950 mAh
Energy: 30 Wh
Max Runtime: 13 hours (Measured with the gimbal balanced in a level and stationary state. ‌When the gimbal is in motion, the operating time will be reduced.)
Charging Time: Approx. 1.5 hours (Measured with a charger supporting 24W fast charging. ‌It is recommended to use chargers supporting QC 2.0 or PD protocols.)
Suggested Charging Temperature: 5° to 40° C (41° to 104° F)
Connections
Bluetooth 5.1
Charging Port (USB-C)
Ronin App Requirements
iOS 11.0 or above
Android 8.0 or above
Languages Supported by the Touchscreen
English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai

Working Performance
Tested Payload
4.5 kg (10 lbs)
Maximum Controlled Rotation Speed
Pan: 360°/s
Tilt: 360°/s
Roll: 360°/s
Mechanical Range
Pan Axis: 360° continuous rotation
Roll Axis: -95° to +240°
Tilt Axis: -112° to +214°

Mechanical & Electrical Properties
Operating Frequency
2.40‌‌0-2.4835 GHz
Bluetooth Transmitter Power
< 8 dBm
Operating Temperature
-20° to 45° C (-4° to 113° F)
Weight
Gimbal: Approx. 1242 g (2.74 lbs)
Grip: Approx. 265 g (0.58 lbs) ‌
Extended Grip/Tripod (Metal): Approx. 226 g (0.49 lbs)
Upper and Lower Quick-Release Plates: Approx. 110 g (0.24 lbs)
Dimensions
Folded: 271×283×75 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)
Unfolded: 416×223×202 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod)

DJI Ronin Image Transmitter
Connections
Power/Communication Port (USB-C)
HDMI Port (Mini HDMI)
RSS Camera Control Port (USB-C)
Expansion Port
Cold Shoe
Operating Frequency
2.40‌‌0-2.4835 GHz
5.725-5.850 GHz
Weight
126 g (0.27 lbs)
Dimensions
82×63×24 mm (L×W×H)
Transmitter Power (EIRP)
‌2.400-2.4835 GHz:
< 25 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)

5.725-5.850 GHz:
< 25 dBm (FCC/SRRC)
< 14 dBm (CE)
Battery
Capacity: 2970 mAh
Compatible Charger: 5 V/2 A
Charging Time: Approx. 2.5 hours
Operating Time: Approx. 3.5 hours
Transmission Range
200 m (SRRC/FCC)
100 m (CE)
Measured in an unobstructed environment free of interference.
Latency
60 ms
Operating Current/Voltage
900 mA/3.7 V
Operating Temperature
0° to 45° C (32° to 113° F)

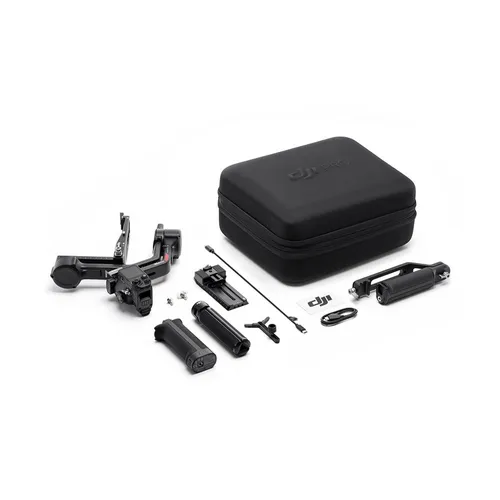

Below are the items included with this product



  1. Gimbal
  2. BG30 Battery Grip
  3. Quick-Release Plate (Arca-Swiss/Manfrotto)
  4. Extended Grip/Tripod (Metal)
  5. Briefcase Handle
  6. Lens-Fastening Support (Extended)
  7. Multi-Camera Control Cable (USB-C, 30 cm)
  8. USB-C Charging Cable (40 cm)
  9. Screw Kit
  10. Carrying Case
  11. DJI Logo Sticker
