Aircraft

Takeoff Weight

1237g±0.5g（EVO II Pro RTK V3)

Max takeoff weight

4.41 lbs (1999 g)

Dimensions

Folded: 230×130×143mm
Unfolded: 457×558×143mm

Wheelbase

15.63 inches (397 mm)

Max ascent speed

Novice mode:3 m/s
Standard: 5 m/s
Ludicrous: 8 m/s

Max descent speed

Novice mode:3 m/s
Standard: 31 m/s
Ludicrous: 4 m/s

Maximum horizontal flight speed (no wind near sea level)

Novice mode:3 m/s
Standard: 10 m/s
Ludicrous: 20 m/s

Maximum flight altitude

800 meters (Altitude limit in the App)

Max flight distance (no wind)

21 km

Max tilt angle

33° (Ludicrous)

Max angular velocity

120°/s

Max flight time (no wind)

38 minutes

Max hovering time (no wind)

32 minutes

Operating temperature range

14°F to 104°F (-10℃ ~ 40℃)

Maximum resistance to wind

Fresh Breeze

Operating frequency

902-928MHz (FCC Only)
2.400-2.4835GHz
5.725-5.850GHz

Transmission power

900M FCC/ ISED：≤31dBm 2.4G
FCC/ ISED：≤32dBm
SRRC/CE/MIC/RCM：≤20dBm 5.8G (non-Japan) ; 5.7G (Japan)
FCC/ISED/SRRC/MIC：≤33dBm
CE/ RCM：≤14dBm

Hovering accuracy

When RTK is enabled and working normally:
Vertical: ±0.1 m; Horizontal: ±0.1 m Vertical: ±0.1 m (when the visual positioning is working normally);±0.5 m (when GNSS works normally)
Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GNSS works normally)
Image position compensation

The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively.

Internal storage

8GB

SD storage

max. support 256GB (UHS-3 or Class 10)

Camera

Sensor

1" CMOS
Effective Pixels: 20 MP

Lens

FOV: 82°
35 mm format equivalent focal length: 29 mm
Aperture: f/2.8 - f/11
Focus range: 0.5 m to infinity

ISO Range

Video: 100-44000
Photo: 100-6400

Shutter Speed

Photo mode: 1/8000 ~ 8s
Other: 1/8000 ~ 1/frame rates

Zoom

1 ~ 16x (Max. 3x lossless zoom)

Photo mode

Single shot/Burst shooting/AEB/Time Lapse/HDR

Maximum photo size

5472*3648 (3:2)
5472*3076 (16:9)
3840*2160 (16:9)

Image Format

JPG (default) / 12bits DNG / JPG+12bits DNG

Photo mode

5472x3076P30/P25/P24
3840x2160P60/P50/P48/P30/P25/P24
2720x1528P60/P50/P48/P30/P25/P24
1920x1080P60/P50/P48/P30/P25/P24

Video format

MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)

Max bitrate

80Mbps

Supported file system

FAT32/exFAT
GNSS

Single frequency high sensitivity GNSS

GPS+BeiDou+Galileo（Asia）
GPS+GLONASS+Galileo（Other areas）

Multi-frequency multi-system high-precision RTK GNSS

Frequency points used：
GPS：L1/L2；
GLONASS：L1/L2；
BeiDou：B1/B2；
Galileo：E1/E5
First positioning time:<50 s
Positioning accuracy:
vertical 1.5 cm + 1 ppm (RMS);
Horizontal 1 cm + 1 ppm (RMS)
1 ppm means that the error increases by 1 mm for every 1 km the aircraft moves

Gimbal

3-axis stabilization

Mechanical range

Tilt: -135° to +45°;
Pan: -100° to +100°

Controllable rotation range

Tilt: -90° to +30°;
Pan: -90° to +90°

Max control speed (Tilt)

300°/s

Angular Vibration Range

±0.005°

Sensing System (Obstacle Avoidance)

Sensing System

Omnidirectional Obstacle Sensing

Forward

Precision Measurement Range: 0.5-18 m
Effective Sensing Speed: <12m/s
FOV: Horizontal: 60°, Vertical: 80°

Backward

Precision Measurement Range: 0.5-16 m
Effective Sensing Speed: <12m/s
FOV: Horizontal: 60°, Vertical: 80°

Upward

Precision Measurement Range: 0.5-10 m
Effective Sensing Speed: <5m/s
FOV: Horizontal: 65°, Vertical: 50°

Downward

Precision Measurement Range: 0.5-10 m
Effective Sensing Speed: <5m/s
FOV: Horizontal: 100°, Vertical: 80°

Sides

Precision Measurement Range: 0.5-10 m
Effective Sensing Speed: <5m/s
FOV: Horizontal: 65°, Vertical: 50°

Operating Environment

Forward, Backward and Sides:
Surface with clear pattern and adequate lighting (lux > 15)
Upward:
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.)
Downward:
Surface with clear pattern and adequate lighting (lux > 15)
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.)

Remote Controller and Image Transmission

Operating Frequency

902-928MHz (FCC Only)
2.400-2.4835GHz 5.725-5.850GHz (non-Japan)
5.650-5.755GHz (Japan Only)

Transmission power(E.I.R.P)

FCC：≤33dBm
CE：≤20dBm@2.4G，≤14dBm@5.8G
SRRC：≤20dBm@2.4G
≤33dBm@5.8G/5.7G
Max Transmission Distance (unobstructed, free of interference)

FCC：15km CE：8km

Display screen

2048x1536 60fps

Battery

5800mAh

Operating time

~3 hours (Max. Brightness) ~4.5 hours (50% Brightness)

Charging time

120 minutes

nternal Storage

ROM 128GB

Battery

Capacity

7100 mAh

Voltage

11.55 V

Max Charging Voltage

13.2 V

Battery Type

LiPo 3S

Energy

82 Wh

Net Weight

0.81 lbs (365 grams)

Charging Temperature Range

41°F to 104°F (5°C to 40°C)

Storage Temperature and Humidity

-10~30℃，65±20%RH

Recommended Storage

Temperature 22-28℃

Max Charging Power

93W

Charging Time

90 minutes

Charger

Input

100-240 V, 50/60 Hz, 1.5A

Output

13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A

Voltage

13.2±0.1V

Rated power

66W

Multi-Charger

Voltage

13.2 V

Charging temperature range

5℃ to 45℃

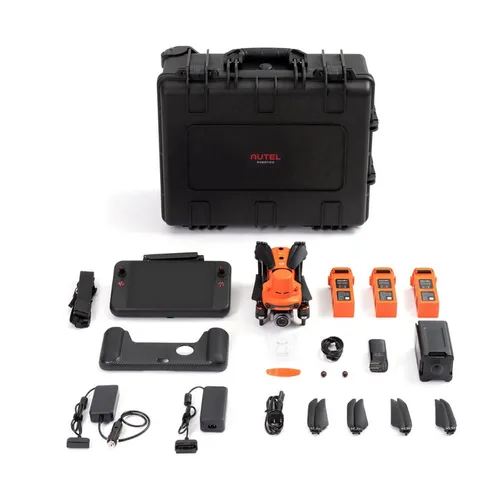

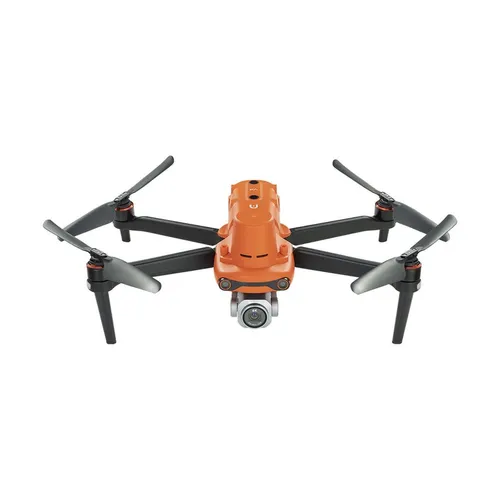

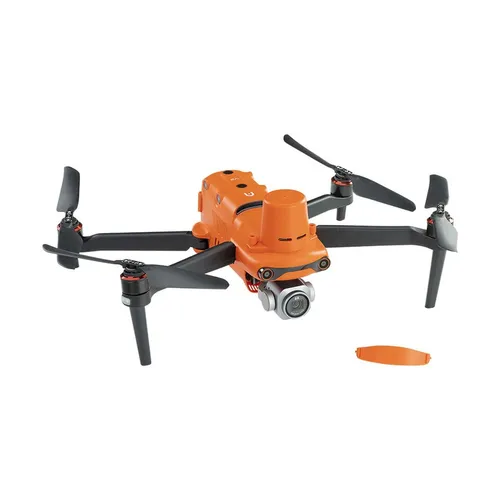

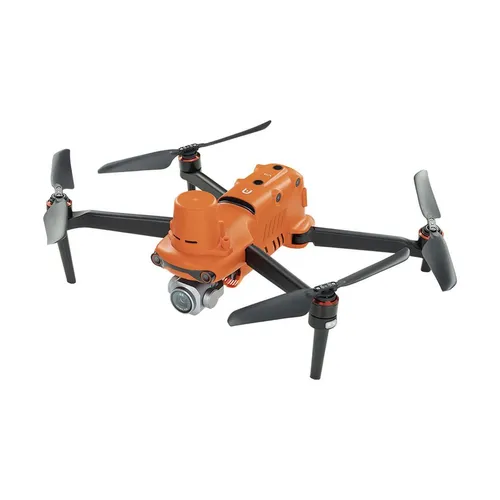

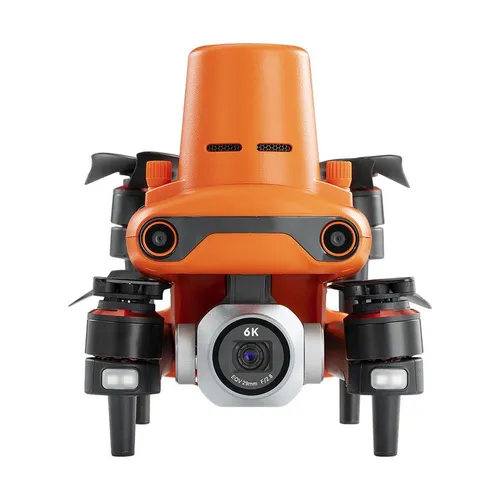

Autel Robotics Evo II Pro 6k RTK V3 Drone - Rugged Bundle
