Physical

Dimensions (W x H x D mm)

42mm x 67mm x 120mm (TX & RX)

Weight

231gms (TX & RX)

Mount points

1 x 1/4-inch 20 screw mount on bottom of device

Environmental

Ambient operating temperature

Up to 50 degrees Celsius

Construction & Control

Body

Aluminium alloy

Rotary control

For channel selection

Power switch

On/off

Power

Input voltage

9-16V

Operating power

4W (TX & RX)

Compatible batteries

NP-F970/750/550 battery (not included)

Built in battery

Display

Resolution

128 x 64 pixels

Size

21.8mm x 10.8mm

Video Input/Output

1 x 3G-SDI, 1 x HDMI input and 1 x HDMI loop-through

1 x 3G-SDI output and 2 x HDMI dual output

Wi-Fi

Frequency

5GHz

Channels

9 (CH0-CH08)

Latency

60ms

Transmission distance (line of sight)

Up to 300m (985ft)

Audio In/Out

Audio Format

PCM dual channel

Resolution & Frame Rates Supported

HDMI

4K30, 4K25, 1080P60, 1080P50, 1080P30, 1080P25, 1080I60, 1080I 50, 720P60, 720P50

3G-SDI

1080P60, 1080P50, 1080P30, 1080P25, 1080I60, 1080I 50, 720P60, 720P50

Warranty

Standard

1 year. Extended to 2 years on product registration

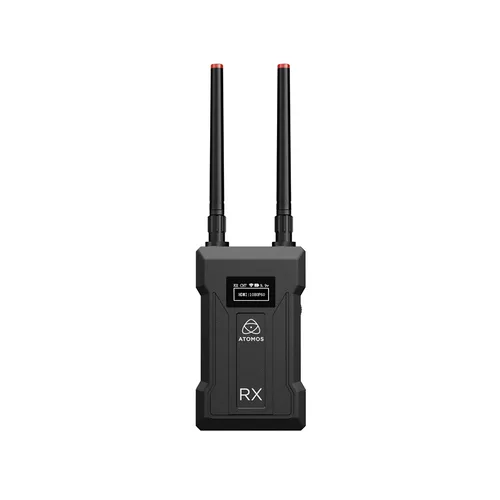

Atomos RX 4K/HD Wireless Video Monitoring (Receiver only)
