Power Output

INFINIMAT 1x2

100W

INFINIMAT 1x4

200W

INFINIMAT 2x4

400W

INFINIMAT 4x4

800W

INFINIMAT 8x8

1600W

INFINIMAT 20x20

6400W

Color Specifications

CCT

2,000K – 10,000K

CRI

≥96

TLCI

≥97

CQS

≥95

SSI (Tungsten)

84

SSI (D56)

73

TM-30 RF (Average)

92

TM-30 RG (Average)

100

Hardware Features

Pixel Count

2 pixels

Pixel Module

1x2

Softbox Inflation Time (Air Pump Mini)

33 sec

Full-Inflation Duration

7 days

Power Specifications

Max Power Consumption

201W

Max Power Output

162W

Operating Voltage DC1 & DC2

12V-16.8V 22V-33.6V

Operating Voltage AC

100V ~ 264V

Control and Firmware

Control Methods

On-board, Sidus Link App, DMX/RDM, CRMX, etherCON

Firmware Upgradeable

Sidus Link, USB Drive

Wireless Range (Bluetooth & CRMX)

≤100m / ≤328.1ft

Control Box Type

INFINIMAT Control Box 400W

Environmental Specifications

Weather Resistance Rating

IP65

Operating Temperature

-20ºC ~ 50ºC

Storage Temperature

-20ºC ~ 85ºC

Control Box Noise Levels High Speed Mode

29.3 dBA

Control Box Noise Levels Medium Speed Mode

24.7 dBA

Weight

INFINIMAT 1x4

2.40kg / 5.29lbs

INFINIMAT Air Pump Mini

0.24kg / 0.53lbs

Control Box 400W

7.2kg / 15.87lbs

Inflatable Clear Softbox 1x4

0.95kg / 2.09lbs

1-Stop Diffusion Cloth

87g / 0.19lbs

2-Stop Diffusion Cloth

97g / 0.21lbs

Light Control Skirt 1x4

0.78kg / 1.72lbs

Light Control Grid 1x4

0.71g / 1.56lbs

Carrying Case (INFINIMAT LED & Clear Softbox 1x4)

4kg / 8.82lbs

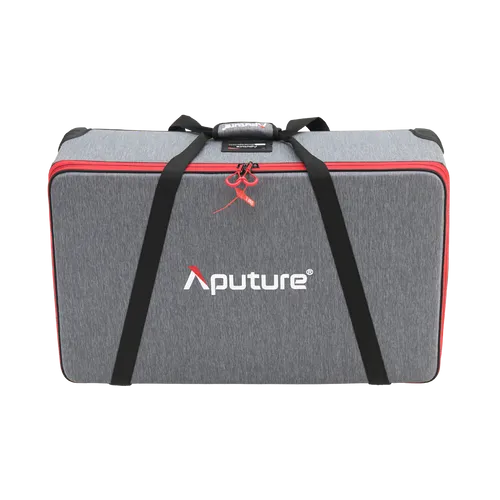

Carrying Case (Control Box 400W Pack)

2.9kg / 6.39lbs

Dimensions

INFINIMAT 1x4

124.00 x 34.00cm
4.07 x 1.12ft

INFINIMAT Air Pump Mini

3.60 x 11.40 x 12.60cm
1.42 x 4.49 x 4.96in

Control Box 400W

33.50 x 22.00 x 24.00cm
13.19 x 8.66 x 9.45in

Inflatable Clear Softbox 1x4

124.00 x 34.00 x 17.00cm
4.07 x 1.12 x 0.56ft

1-Stop or 2-Stop Diffusion Cloth

122.0 x 34.5cm
48.0 x 13.6in

Light Control Skirt 1x4

300.00 x 50cm
118.00 x 19.69in

Light Control Grid 1x4

122.00 x 35.00cm
4.00 x 1.14ft

Carrying Case (INFINIMAT LED & Clear Softbox 1x4)

76.50 x 47.00 x 26.00cm
30.11 x 18.50 x 10.23in

Carrying Case (Control Box 400W Pack)

43.50 x 39.50 x 31.40cm
17.13 x 15.55 x 12.36in
