Lens

Focal Length

35mm

Maximum and Minimum Aperture

f/1.4 - f/16

Lens Mount Type

RF Mount

Compatible Cameras

Canon EOS R-series, APS-C and full-frame

Minimum Focusing Distance

0.28m (11.0in)

Maximum Magnification

0.18x

Field of View, at Minimum Focus Distance

Approx. 195mm × 130mm (7.7" x 5.1")

Angle of View (Diagonal)

Approx. 63°

Optical Design

Lens Construction

14 elements in 11 groups

Special Elements

(Two) UD Lens, (Two) Aspherical Lenses

Lens Coating

Canon ASC (Air Sphere Coating), SSC (Super Spectra Coating), Fluorine Coating

Filter Size Diameter

67 mm

Aperture Blades

11

Image Stabilization (yaw/pitch directions)

7.0 stops of hand-held shake correction without coordinated control by EOS R3

Focusing

Focusing Drive System

Canon Nano USM (Ultrasonic Motor) and VCM (Voice Coil Motor)

Full-time Manual Focusing

Yes
(Supports both ONE SHOT AF and SERVO AF with compatible EOS R-series cameras)

Dual Pixel CMOS AF Coverage (Horizontal x Vertical)

EOS R — Approx. 88% x 100%
EOS R5/R6 — Approx. 90% x100%
EOS R7/R10/R50 — Approx. 100% x 100%

Exterior Design

Control Ring

Dual-function Manual focus ring / Control Ring (selected using camera menu)

Manual Focus Ring

Electronic ring system
Full-time Manual focus possible
No physical limit to ring rotational angle

AF/MF Switch

Provided

Iris Ring

Provoded

Aperture value adjustment steps

During movie shooting: 1/32 stop; during still photo shooting: adjust on camera

Lens Function Button

Provided

Distance Scale

None
Distance scale available in EVF or Live View LCD screen of compatible EOS R-series cameras

Distance Limiter Switch

None

Dust / Weather Resistant Construction

Yes

Dimensions, Weight

Maximum Outer Diameter x Length

Approx. 3.0 in. x 3.9 in. (76.5mm x 99.3mm)

Weight

Approx. 19.6 oz. / 1.2 lb. / 555g

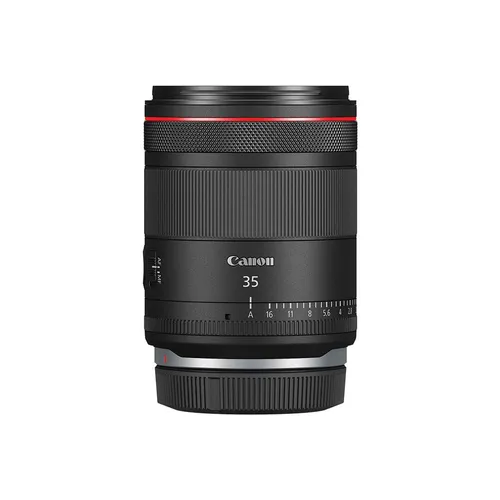

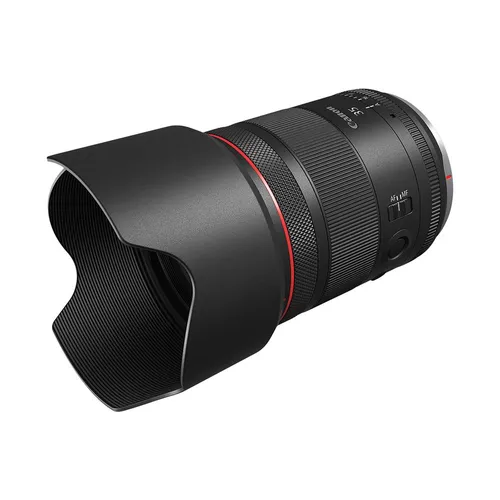

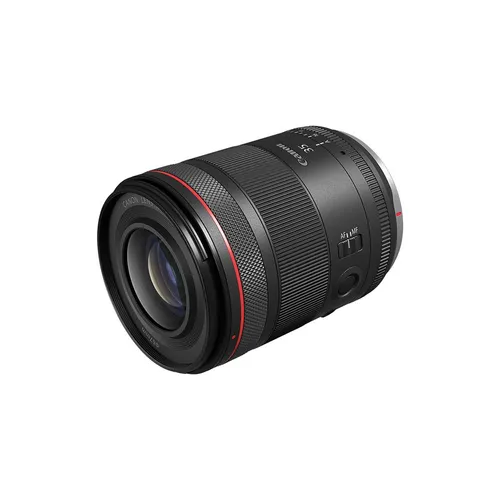

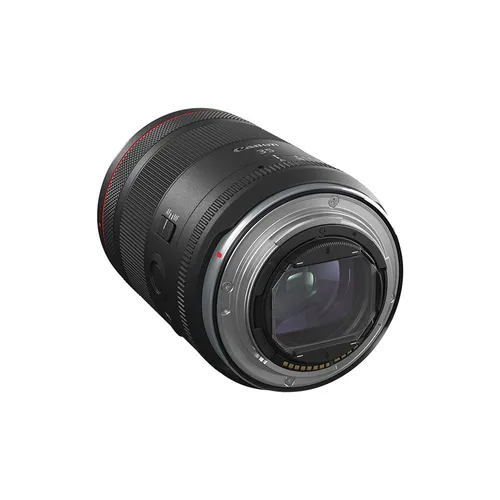

Canon RF 35mm F1.4 L VCM Lens
