RODE RODELink Wireless Filmmaker Kit

Manufacturer:
Rode
Our Part Number:
RDE1101
Manufacturer Part No:
RODELINK
Backorder
Ship Time: Please LiveChat or Email For Time
Quick Overview
- Series II, 2.4GHz digital transmission
- 128-bit encryption
- Up to 100 metres range
- OLED display (on receiver)
- One button pairing
$399.00
RODE RODELink Wireless Filmmaker Kit
RODE RODELink Wireless Filmmaker Kit
RODELink represents the next generation of digital wireless systems. Using a series II 2.4GHz digital transmission with 128-bit encryption, it is able to constantly monitor and hop between frequencies to maintain the strongest possible signal level at a range of up to 100 metres (over 100 yards). The RODELink Filmmaker Kit provides everything you need to start shooting video wirelessly, including a receiver, transmitter and broadcast-grade lavalier microphone. The receiver (RX-CAM) features an OLED display with information on level, battery status (receiver and transmitter), mute and channel selection. The unit can be mounted on a standard camera shoe mount, 3/8" thread or belt-clip, and for added versatility the shoe mount can be located in one of two positions. The lightweight transmitter (TX-BELT) can be fitted to a belt or clothing and features a locking thread to ensure the microphone connection is as secure as possible. RODE's omnidirectional Lavalier microphone is included in the kit to provide the highest possible audio reproduction quality.

Features:
  • Series II, 2.4GHz digital transmission
  • 128-bit encryption
  • Up to 100 metres range
  • OLED display (on receiver)
  • One button pairing
  • Three level gain control
  • AA battery or USB powered
  • Includes RODE's broadcast Lavalier microphone
RODELink Filmmaker Kit Specifications
Transmission type
2.4GHz Fixed Frequency Agile System
System dynamic range
112dB
Range (distance)
100m
Frequency range
35Hz - 22kHz
Maximum output level
1v Rms (2.8v P-p)
Max input signal level
1v Rms (2.8v P-p)
Max latency
4ms
Receiver (RX-CAM)
Power source
2 X AA Battery Or MicroUSB
Antenna
Internal
Output connection
3.5mm TRS Locking Jack Socket - Dual Mono
Output impedance
300Ω
Dimensions
111mm X 65mm X 52mm
Weight
190gm
Transmitter (TX-BELT)
Power source
2 X AA Battery Or MicroUSB
Antenna
Internal
Output connection
3.5mm TRS Locking Jack Socket
Output impedance
10kΩ
Dimensions
111mm X 65mm X 40mm
Weight
190gm
Lavalier
Acoustic Principle
Pressure Gradient
Active Electronics
JFET impedance converter
Capsule
0.10"
Address Type
End
Frequency Range
60Hz - 18kHz
Output Impedance
3000Ω
Maximum SPL
110dB SPL (@ 1kHz, 1% THD into 1KΩ load)
Maximum Output Level
189.0dBu (@ 1kHz, 1% THD into 1KΩ load
Sensitivity
-33.5dB re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
Equivalent Noise Level (A-weighted)
25dB-A
Weight
1.00gm
Dimensions
12.00mmH x 4.50mmW x 4.50mmD
Warranty
10 year warranty

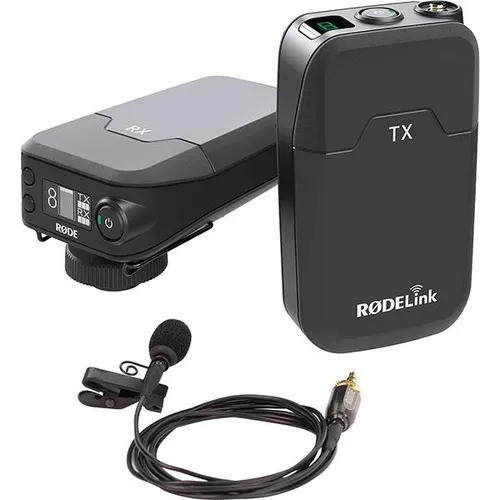

Below are the items included with this product



  1. Lavalier Lapel Microphone
  2. RX-CAM Camera-Mounted Wireless Receiver
  3. TX-BELT Beltpack Wireless Transmitter
  4. Captive TRS cable
